- Body Material: Stainless Steel
- Tank Connection: 2" MNPT
- Flow Capacity - CFM Air U.L.: 10,530
- Flow Capacity - SCFM Air ASME: 9,724
- For Tanks with Surface Area Up To: Sq. Ft.: 625
- Relief Setting: 250 PSIG
- Service: LP & NH3
For Tanks with Surface Area Up To:
Based on UL Flow capacities.
H5118 Are For Mobile & Stationary Applications.
Primarily for trucks transporting LPG, Anhydrous Ammonia (NH3) or other compressed gases.
Type H5118 stainless steel relief valves resist rust and corrosion, including a 300 Series stainless steel spring for additional resistance to product contaminants. A thickly molded main seal improves service life and resistance to severe applications. Stainless steel makes it easy to remove the valve from the tank for periodic testing (as prescribed by DOT) and permits standard tank couplings instead of the more costly flanged tank openings. Standard product temperature rating is -20 to 160°F / -29 to 71°C.

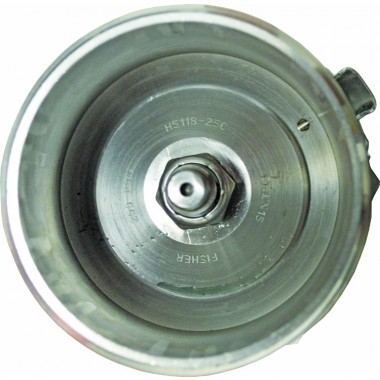

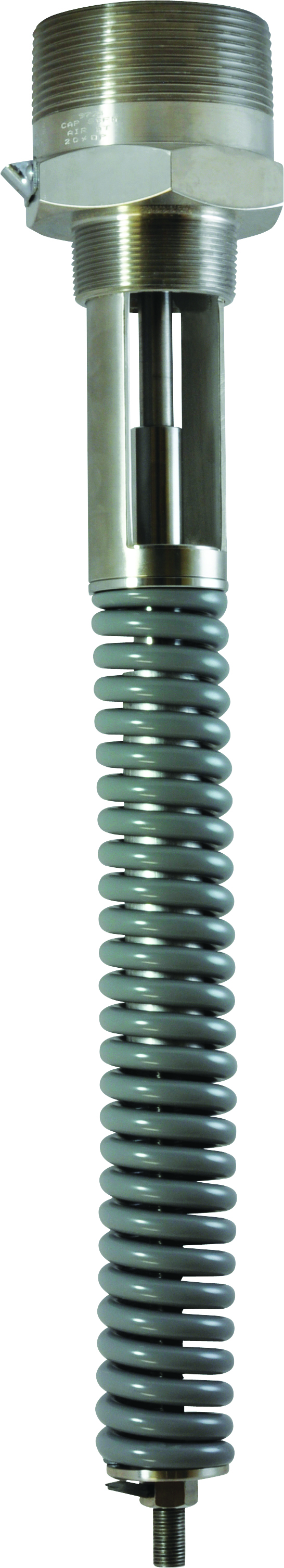

Type H5118: Semi-Internal relief valve for 2 in. threaded recessed well-head connections.
Tight fitting protective caps Type P299 are standard on the valve to ensure no debris blocks the valve discharge. Standard set points listed with UL for the Type H5118 include 250 and 265 psig / 17.2 and 18.3 bar. All set points between 100 and 400 psig / 6.9 and 27.6 bar are available with ASME approvals.
Rain Cap - 122815
