- Inlet/Outlet Size: 1" FNPT
- Relief Pressure Setting PSIG (BAR): 100 (6.9)
- Outlet Range PSIG (BAR): 70 - 140 (4.8 - 9.7)
- Relief Capabilities GPM/LPG 10 PSI Over Set Point: 49
- Relief Capabilities GPM/LPG 50 PSI Over Set Point: 93

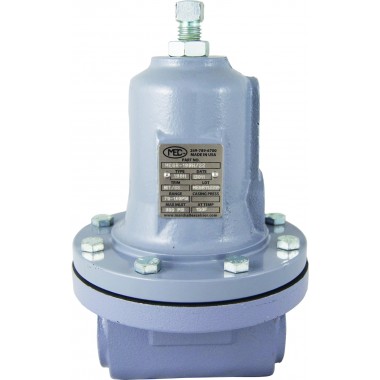

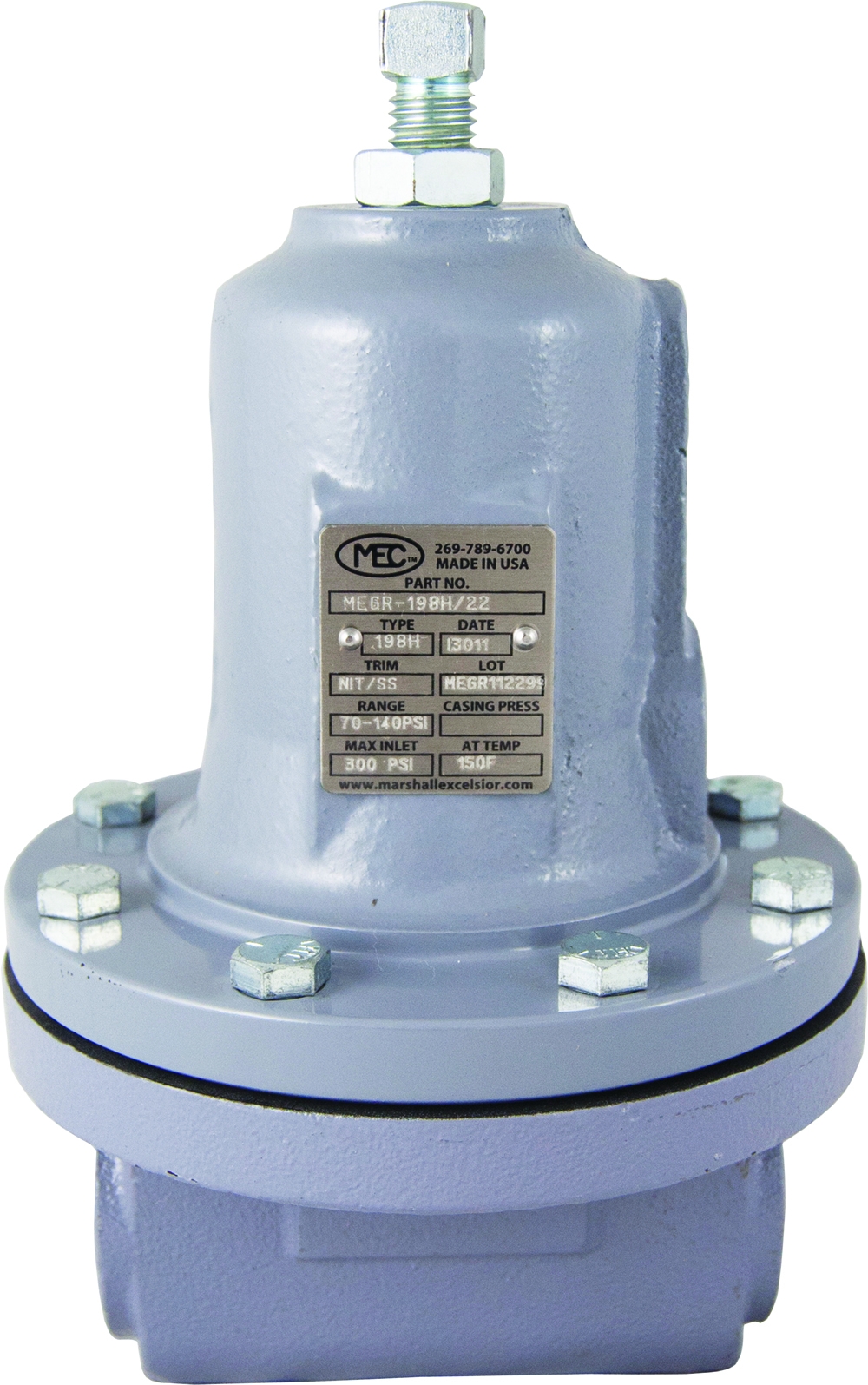

The MEGR-198H Series, liquid service valves are direct-operated relief valves for use on relief and backpressure applications involving large LP-Gas pumping systems and vaporizers. Internal pressure registration eliminates the need for a control line.
Specifications:
• Type: Adjustable / PSI.
• Orifice Material: Stainless Steel.
• Max. Inlet Pressure: 250 PSIG.
• Regulator Spring: Plated Steel.
• O-Ring Seat: Nitrile (NBR).
• Exterior Finish: Gray Powder Coat.
• Diaphragm: Neoprene.
• Body Material / Spring Case: Iron.
