Fisher Service Relief Valves - Liquid
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Body Size, Inches | Relief Pressure Range, PSIG / bar | Relief Pressure Setting, PSIG / bar | Propane Relief Capacity GPM / l/min at Following Pressure Build-Up Over Relief Setting 5 PSIG / 0,34 bar | Propane Relief Capacity GPM / l/min at Following Pressure Build-Up Over Relief Setting 10 PSIG / 0,69 bar | Propane Relief Capacity GPM / l/min at Following Pressure Build-Up Over Relief Setting 20 PSIG / 1,4 bar | Propane Relief Capacity GPM / l/min at Following Pressure Build-Up Over Relief Setting 30 PSIG / 2,1 bar | Propane Relief Capacity GPM / l/min at Following Pressure Build-Up Over Relief Setting 50 PSIG / 3,4 bar |
|---|---|---|---|---|---|---|---|---|---|
| 123667 | 98H-17 | 1/2" FNPT | 25 - 75 / 1,7 - 5,2 | 50 / 3,4 | 10.5 / 39,7 | 15.4 / 58,3 | 21.7 / 82,1 | 25.9 / 98,0 | 30.8 / 117 |
| 123668 | 98H-14 | 1/2" FNPT | 70 - 140 / 4,8 - 9,7 | 100 / 6,9 | 8.4 / 31,8 | 15.4 / 58,3 | 27.3 / 103 | 32.9 / 125 | 39.2 / 148 |
| 123672 | 98H-22 | 3/4" FNPT | 70 - 140 / 4,8 - 9,7 | 100 / 6,9 | 30.8 / 117 | 49.0 / 185 | 67.9 / 257 | 79.8 / 302 | 93.1 / 352 |

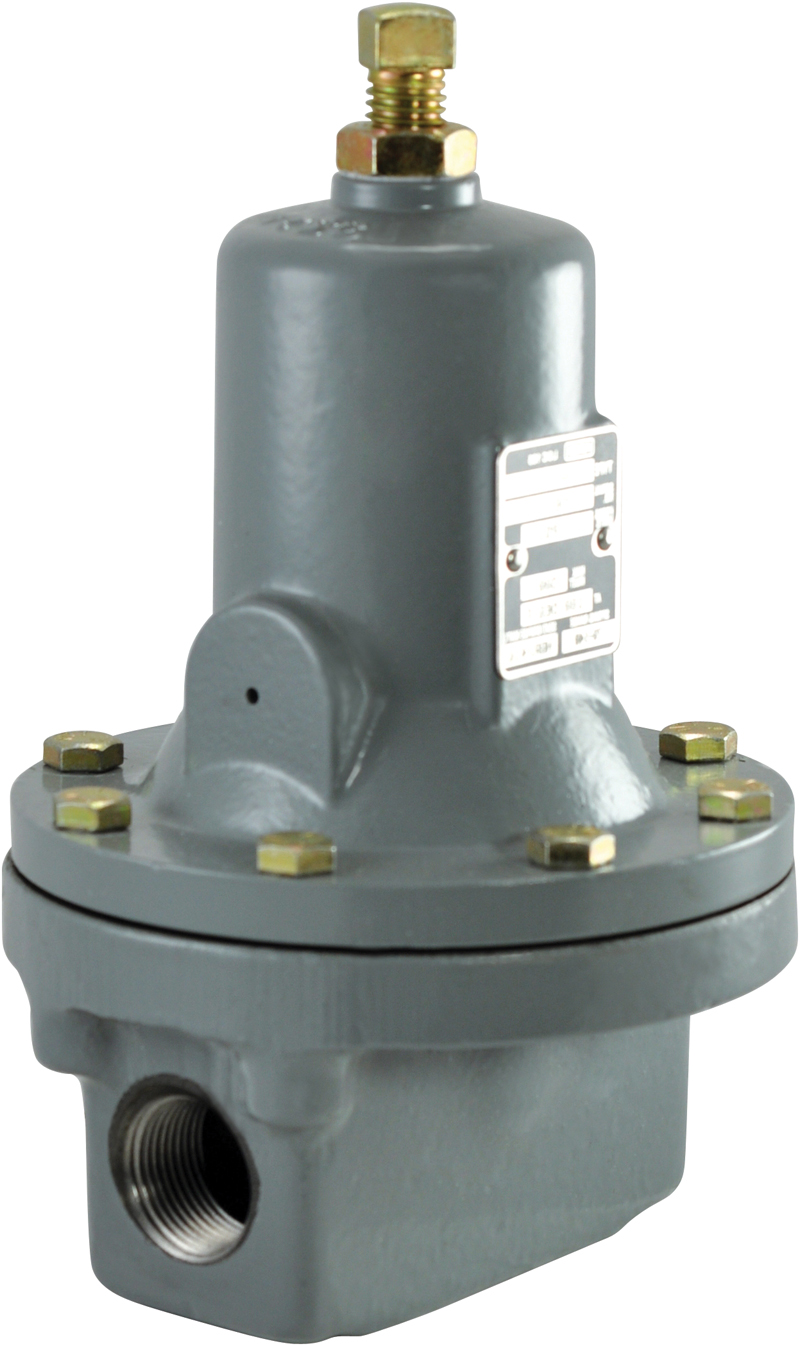

| 123675 | 98H-30 | 1" FNPT | 70 - 140 / 4,8 - 9,7 | 100 / 6,9 | 30.8 / 117 | 49.0 / 185 | 67.9 / 257 | 79.8 / 302 | 93.1 / 352 |
