- Inlet & Outlet: 2" FNPT
- Outlet Pressure Range: 5 - 15 PSI
- Outlet Pressure Setting: 15 PSI
- Capacity in BTU/H LPG: 37,950,000 *
- Maximum Operating Inlet Pressure: 250 PSI
- Orifice: 7/8"
* Capacity in BTU per hour LPG:
Capacity based on inlet pressure 20 psi greater than outlet pressure, external registration and 0.1 to 0.3 psi proportional band.
Note: Additional spring ranges & body styles are available. Ask your salesman for additional configurations & for more information.
For Commercial and Industrial high-pressure applications, such as distributed community systems, factories, office buildings, restaurants, Regulator Technologies has a wide variety of products and solutions. For ease of reference, only the most popular commercial and industrial regulators are shown on these pages. Other orifice sizes, body sizes and outlet pressure ranges are available. The higher capacities on commercial and industrial installations usually require a Two-stage regulator system. Temperature ratings for the Type 99 is -20 to 180°F.
Note: Because of various spring ranges and orifice sizes, all commercial and industrial regulators should be individually sized for the particular installation. Consult specific product bulletins for maximum pressure ratings. Contact your salesman for assistance.

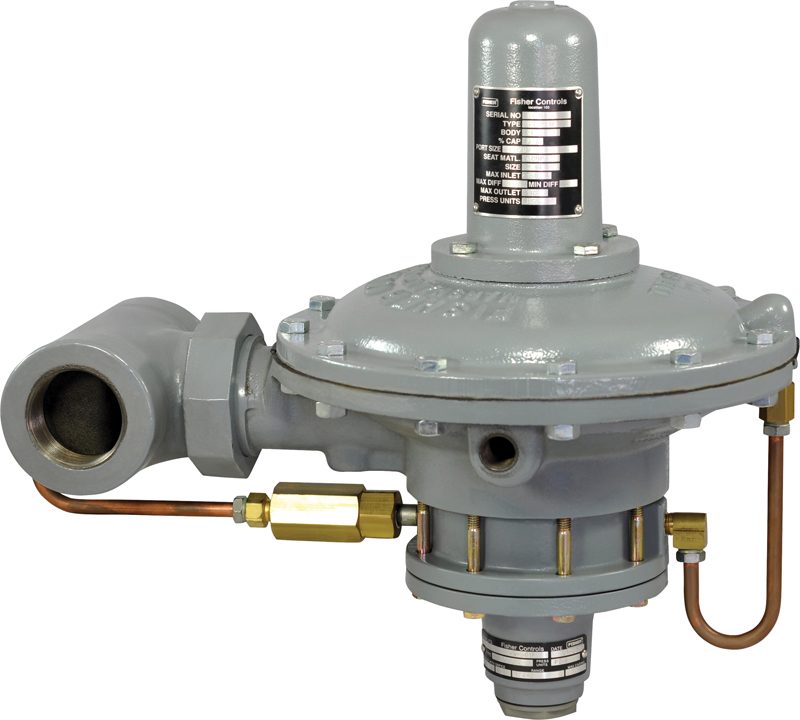

Type 99 – Pilot-operated unit keeps outlet pressure constant despite varying flow rates and inlet pressures. Designed to handle loads up to 74,318,000 BTU per hour, the Type 99 is ideal for multiple customer installations. The unique pilot design, with fast opening and closing operation, makes the Type 99 ideal for large industrial boiler applications. The Type 99 can be used for low or high pressure applications. A downstream control line is required. Additional overpressure protection is recommended to prevent excessive buildup in the downstream line.
Note: Type 99 regulators do not have an internal relief and should be installed with additional/external overpressure protection. These units should not be installed as part of a two-stage system in fixed piping serving 14 inches w.c. appliance systems unless additional overpressure protection is installed that will make the system compliant with NFPA 58 requirements for a two-stage system. Please consult with your salesman for more information.
Overpressure Protection - The Type 99 is also available in monitor configurations. Note that the Type 99 monitor regulators have unique type numbers. For more information on monitor overpressure protection, see LP-31.
