- Inlet & Outlet: 2" CL300 RF Flange
- Outlet Pressure Range: 3 - 40 PSI
- Outlet Pressure Setting: 20 PSI
- Capacity in BTU/H LPG: 215,300,000 *
- Maximum Operating Inlet Pressure: 400 PSI
- Orifice: 2 3/8"
* Capacity in BTU per hour LPG:
Capacity based on 40 PSI inlet pressure & 15 PSI setpoint.
Note: Additional spring ranges & body styles available. Ask your salesman for more information.

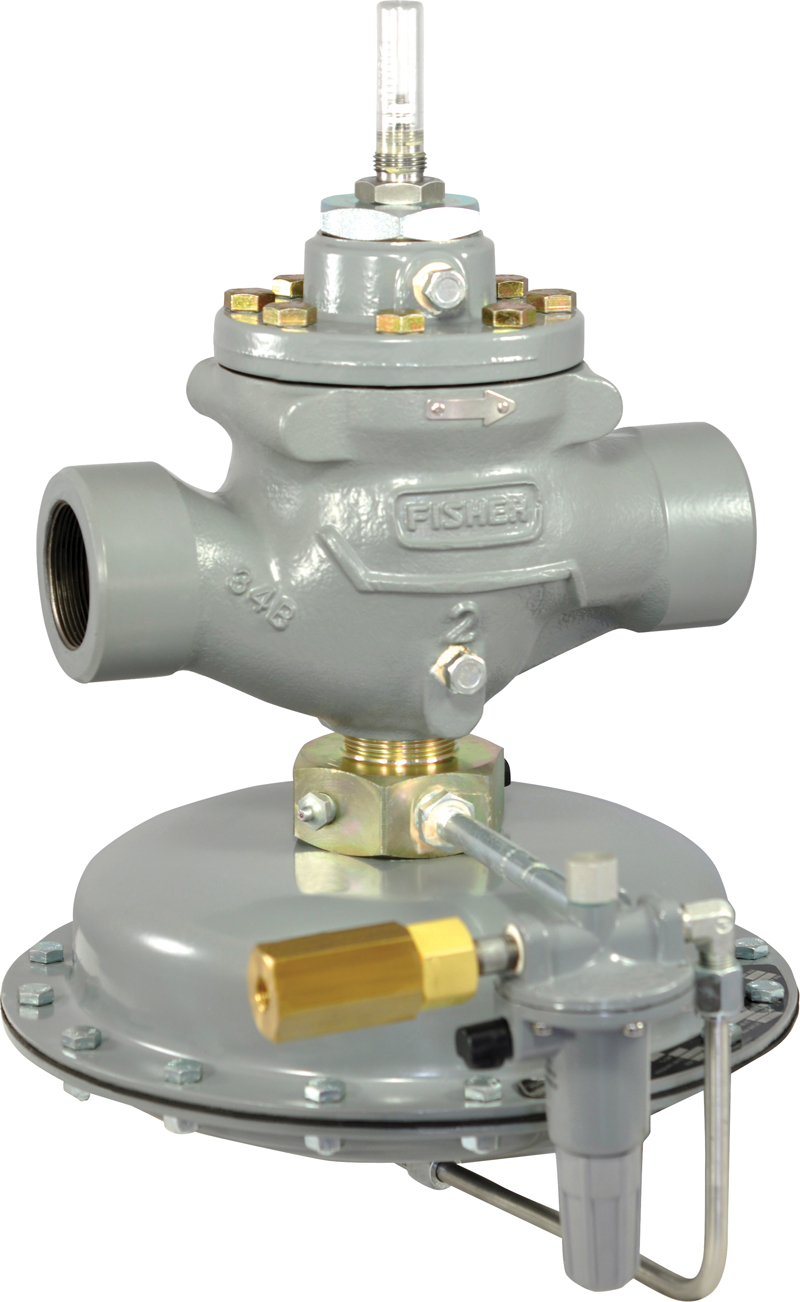

Type 1098 - The Type 1098-EGR regulator provides large capacities for use in large commercial applications and large
distributed community systems. Designed to handle loads from 170,000,000 BTU (2 in. size) to in excess of
1,000,000,000 BTU (4 in. size) and rated to 75 psig for Maximum Outlet Pressure, the Type 1098H is a regulator unmatched in performance in the LPG Industry. The Type 1098’s pilot-operated two-path system is designed to quickly
respond to sudden changes in the downstream demand, making this regulator ideal for fuel gas supply to industrial boilers, furnaces, ovens and mixers. Temperature rating for the Type 1098 is -20 to 180°F. Actuator/diaphragm are size 40.
Flanged Bodies - The Types 1098 and 1098H are available with flanged bodies. Flanges are available in 2, 3 and 4 in. body sizes and CL300 FF end connection.
Note: Type 1098 regulators do not have an internal relief and should be installed with additional/external overpressure protection. These units should not be installed as part of a two-stage system in fixed piping serving 14 in. w.c. appliance systems unless additional overpressure protection is installed that will make the system compliant with NFPA 58 requirements for a two-stage system. Please consult with your salesman for more information.
Overpressure Protection - The Types 1098 and 1098H is also available in monitor configurations. Note that the Type 1098H regulators may be used either as the worker or monitor regulator. For more information on monitor overpressure protection, see LP-31.
The Type 1098 regulator is a highly advanced regulator with many configurations for various applications. Always consult Emerson™ to discuss your application prior to placing your order.
