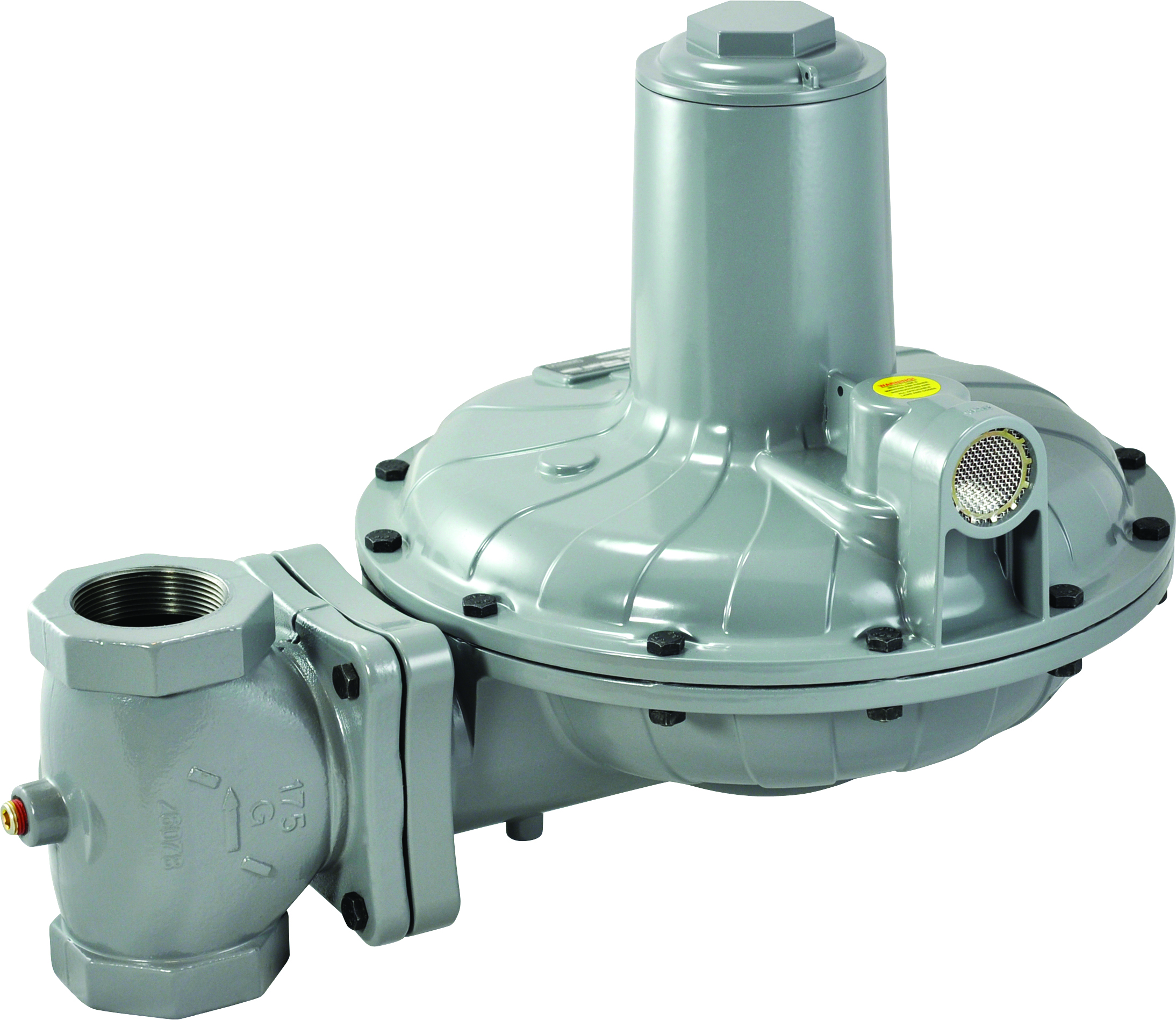

Fisher CS800 Series
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Capacity in BTU/H LPG | Orifice | Inlet & Outlet | Outlet Pressure Setting | Maximum Operating Inlet Pressure | Outlet Pressure Range |
|---|---|---|---|---|---|---|---|
| 123950 | CS800IR-8CC7 | 10,460,000 * | 1" | 1 1/2" FNPT | 11" W.C. | 30 PSI | 8" - 12" W.C. |
| 123952 | CS800IR-8CC8 | 21,809,000 * | 1" | 2" FNPT | 11" W.C. | 30 PSI | 8" - 12" W.C. |
| 123956 | CS800IR-8DC8 | 18,200,000 * | 1" | 2" FNPT | 11" W.C. | 30 PSI | 10" - 16" W.C. |
| 123962 | CS820IR-8FC7 | 15,011,000 * | 1" | 1 1/2" FNPT | 2 PSI | 30 PSI | 1 - 2.5 PSI |
| 123964 | CS820IR-8FC8 | 21,436,000 * | 1" | 2" FNPT | 2 PSI | 30 PSI | 1 - 2.5 PSI |
| 123970 | CS820IR-8HC7 | 15,262,000 * | 1" | 1 1/2" FNPT | 5 PSI | 30 PSI | 2.5 - 5.5 PSI |
| 123972 | CS820IR-8HC8 | 16,532,000 * | 1" | 2" FNPT | 5 PSI | 30 PSI | 2.5 - 5.5 PSI |
