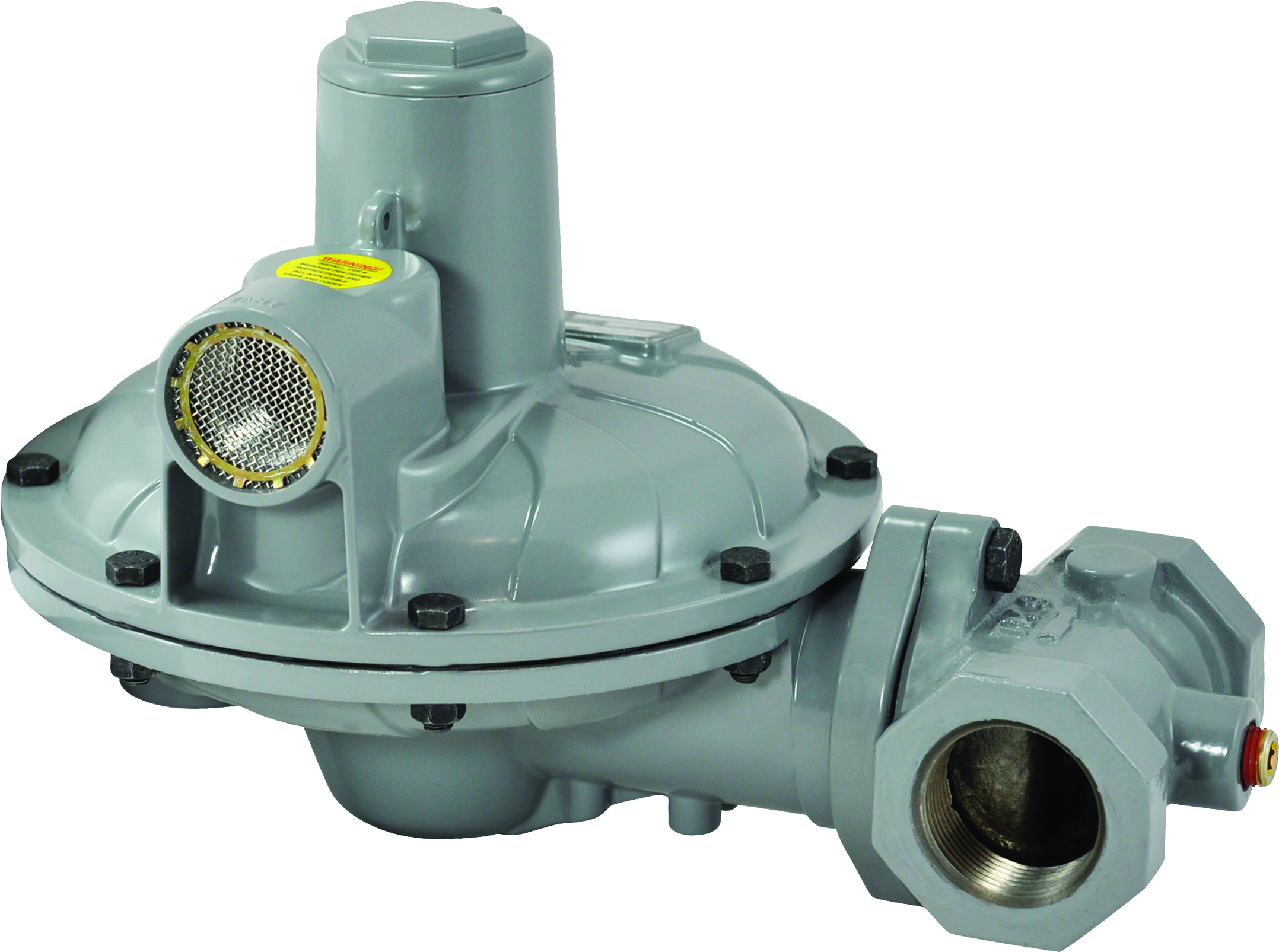

Fisher CS200 Series
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Capacity in BTU/H LPG | Inlet & Outlet | Orifice | Outlet Pressure Range | Outlet Pressure Setting | Maximum Operating Inlet Pressure |
|---|---|---|---|---|---|---|---|
| 124951 | CS200IR-6EC1 | 2,500,000 * | 3/4" FNPT | 1/2" | 10" - 14" W.C. | 11" W.C. | 40 PSI |
| 124967 | CS200IR-6EC3 | 3,800,000 * | 1" FNPT | 1/2" | 10" - 14" W.C. | 11" W.C. | 40 PSI |
| 124959 | CS200IR-6EC6 | 3,900,000 * | 1 1/4" FNPT | 1/2" | 10" - 14" W.C. | 11" W.C. | 40 PSI |
| 124950 | CS200IR-6HC1 | 3,760,000 * | 3/4" FNPT | 1/2" | 1 - 2 PSI | 2 PSI | 40 PSI |
| 124966 | CS200IR-6HC3 | 4,780,000 * | 1" FNPT | 1/2" | 1 - 2 PSI | 2 PSI | 40 PSI |
| 124958 | CS200IR-6HC6 | 5,327,000 * | 1 1/4" FNPT | 1/2" | 1 - 2 PSI | 2 PSI | 40 PSI |
