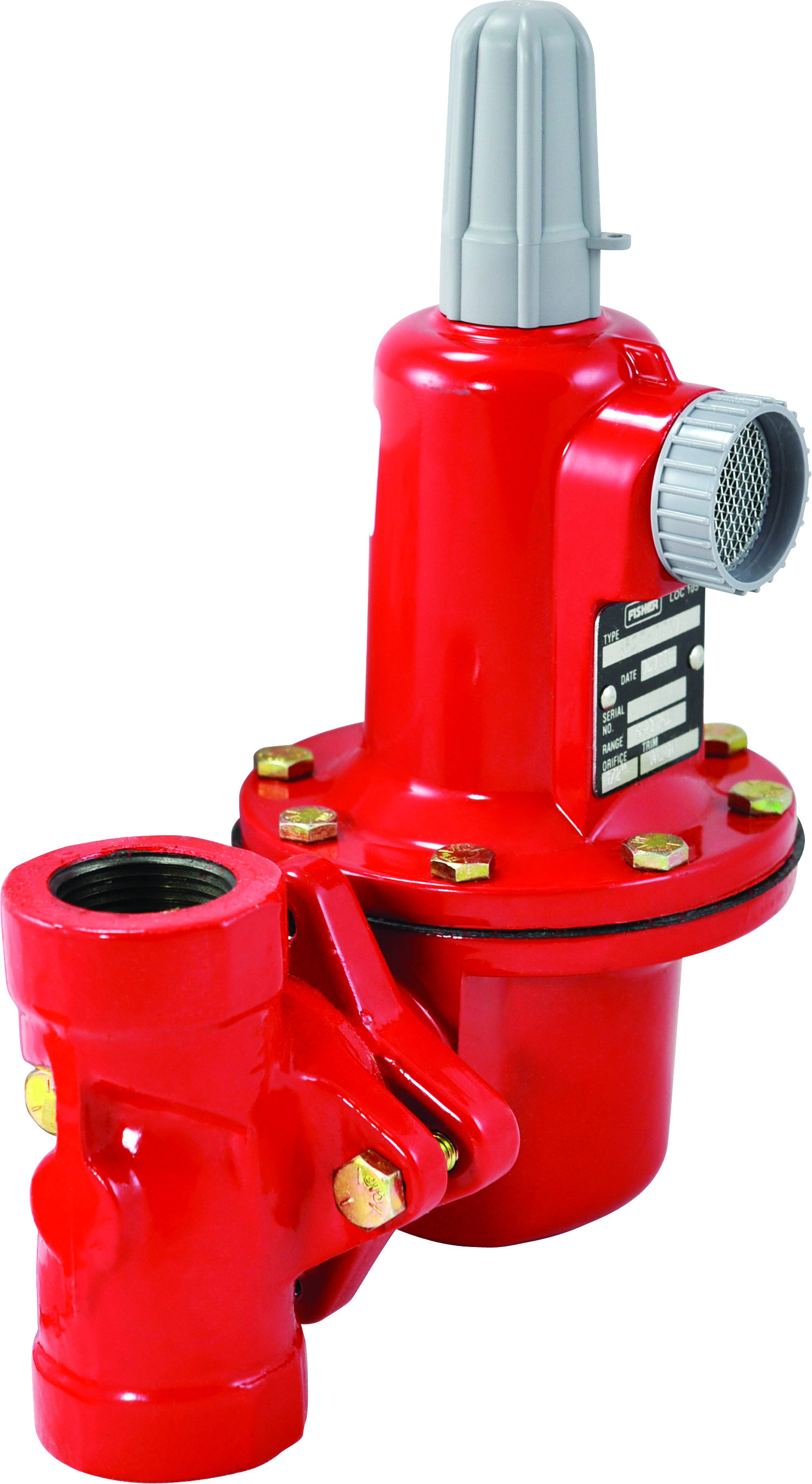

Fisher High Pressure Commercial/Industrial
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Capacity in BTU/H LPG | Inlet & Outlet | Orifice | Outlet Adj. Range (PSI) | Outlet Set Point (PSI) | Maximum Operating Inlet Pressure |
|---|---|---|---|---|---|---|---|
| 123705 | 627-5810 | 6,080,000 * | 3/4 | 3/8 | 5 - 20 | 10 | 250 PSI |
| 123720 | 630-104/78 | 14,000,000 * | 2" FNPT | 1/2" | 8 - 20 | 10 | 250 PSI |
| 123723 | 627M-268 | 20,948,000 * | 2" FNPT | 1/2" | 15 - 40 | 40 | 250 PSI |
| 123737 | 627-577 | 20,948,000 * | 2" FNPT | 1/2" | 15 - 40 | 40 | 250 PSI |
| 123666 | 627R-198 | 14,837,000 * | 1" FNPT | 1/2" | 15 - 40 | 40 | 200 PSI |
| 123716 | 627-497 | 14,837,000 * | 1" FNPT | 1/2" | 15 - 40 | 40 | 250 PSI |
| 123734 | 627-7710V | 10,773,000 * | 1" FNPT | 1/2" | 5 - 20 | 10 | 250 PSI |
| 123715 | 627-7710 | 10,773,000 * | 1" FNPT | 1/2" | 5 - 20 | 10 | 250 PSI |
| 123663 | 627R-197 | 10,773,000 * | 1" FNPT | 1/2" | 5 - 20 | 10 | 200 PSI |
| 123735 | 627M-471 | 10,773,000 * | 1" FNPT | 1/2" | 5 - 20 | 10 | 250 PSI |
| 123726 | 627-576 | 10,773,000 * | 2" FNPT | 1/2" | 5 - 20 | 10 | 250 PSI |
| 123727 | 627-496 | 10,773,000 * | 1" FNPT | 1/2" | 5 - 20 | 10 | 250 PSI |
| 123719 | 627-493 | 14,632,000 * | 1" FNPT | 3/8" | 15 - 40 | 40 | 250 PSI |
| 123669 | 627R-193 | 7,434,000 * | 1" FNPT | 3/8" | 5 - 20 | 10 | 200 PSI |
| 123731 | 627-6210V | 10,755,000 * | 3/4" FNPT | 1/2" | 5 - 20 | 10 | 250 PSI |
| 123708 | 627-6210 | 10,755,000 * | 3/4" FNPT | 1/2" | 5 - 20 | 10 | 250 PSI |
| 123729 | 627-5810V | 6,080,000 * | 3/4" FNPT | 3/8" | 5 - 20 | 10 | 250 PSI |
| 123695 | 1301F-1 | 3,863,000 * | 1/4" FNPT | 5/64" | 10 - 75 | 75 | 6,000 PSI |
