- Length: 48"
- Outlet Connection: Standard Male POL 7/8" Hex
- Inlet Connection: Standard Male POL 7/8" Hex
- Tube Size: 1/4"

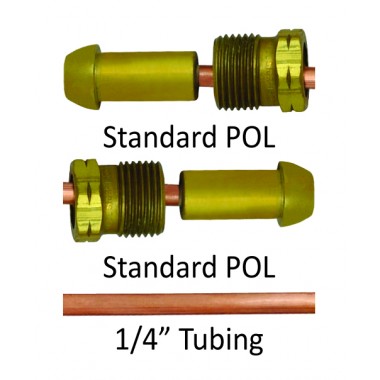

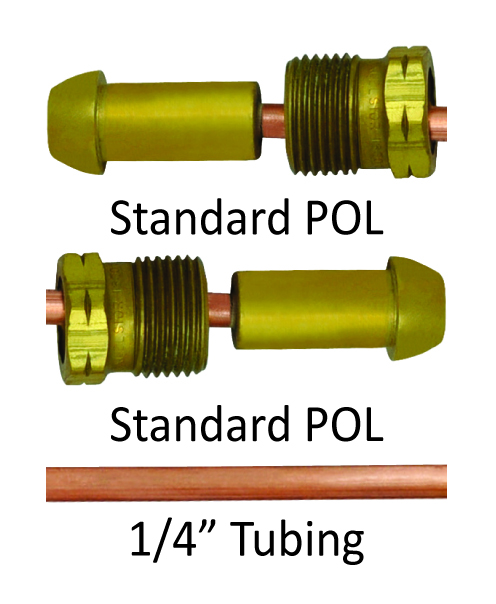

These pigtail and hogtail assemblies come with two brass connectors brazed onto a heavy wall annealed copper tube with a 250 psig pressure rating. The 1/4” tube have a pull test rating of 500 pounds. UL LISTED and tested in accordance with UL 569.
Different applications require specific pigtail and hogtail assemblies. Special attention is required when ordering to ensure the proper assembly is purchased for the intended application. Marshall Excelsior recommends every new installation or replacement regulator have a new pigtail installed.
