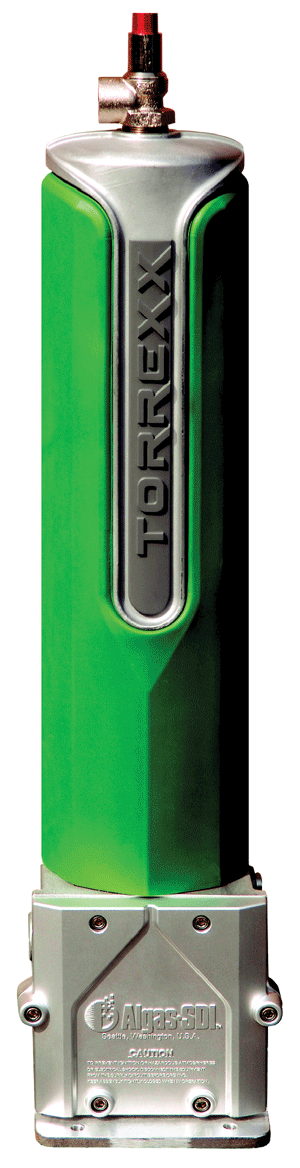

Algas Torrexx Vaporizer
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Gallons/hr (nominal) | Million BTU/hr | Dimension A | Dimension B |
|---|---|---|---|---|---|
| 710070 | TX25 | 12.5 | 1.1 | 45.40" 1153mm | 41" 1040mm |
| 710071 | TX50 | 25 | 2.2 | 45.40" 1153mm | 41" 1040mm |
| 710072 | TX100 | 50 | 4.5 | 45.40" 1153mm | 41" 1040mm |
| 710073 | TX160 | 80 | 7.2 | 51.40" 1306mm | 47" 1190mm |
| 710074 | TX240 | 120 | 10.9 | 56.40" 1433mm | 52" 1320mm |
| 710075 | TX320 | 160 | 14.5 | 63.40" 1610mm | 59" 1500mm |
