- 3 Phase Motor: 20 HP
- Frame Size: 256T
- RPM: 640

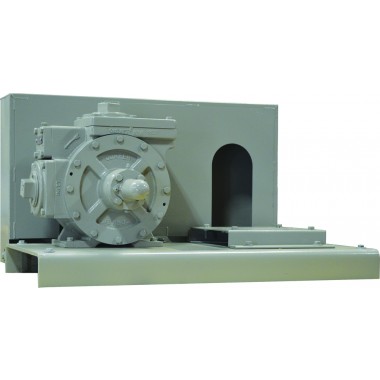

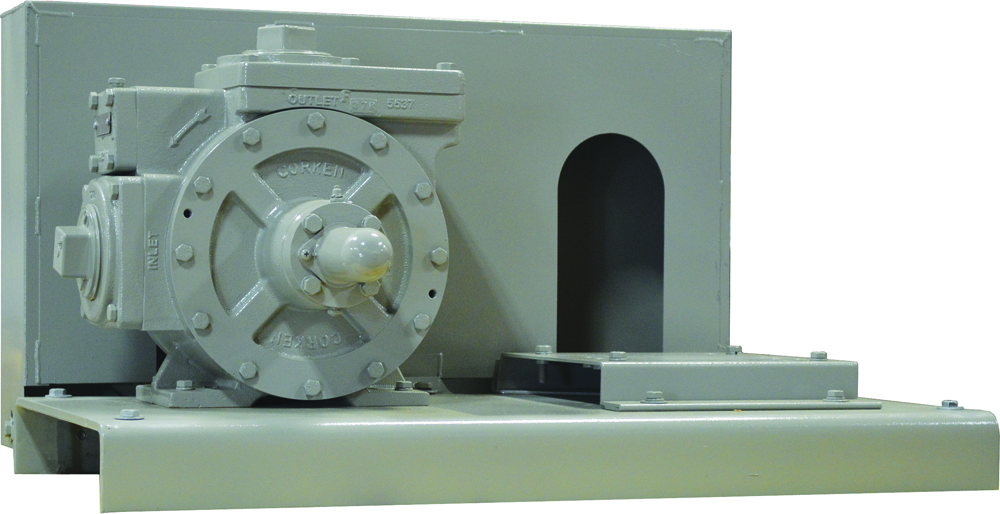

103 Style - Mounting includes steel baseplate, adjustable driver slide base, V-belt drive & enclosed belt guard.
| Suggested Motor (Sold Separately) |
|||
| Service | Motor | Shaft Size | Voltage |
| LP-Gas | EM7056T | 1 5/8" | 230/460 |
| NH3 | EM2334T | 1 5/8" | 230/460 |
Motor - 140430
Z4500 Cam - 140515
Z4500 Cam Key Pin (Qty. 5) - 140708
Z4500 Case O-Ring - Buna-N (Qty. 2) - 140971
Z4500 Coro-Vane Shaft Cover - 140603
Z4500 Flange O-Ring - Buna-N (Qty. 2) - 140970
Z4500 Flange O-Ring - Buna-N - 140940
Z4500 Flange O-Ring - Neoprene - 140989
Z4500 Flange O-Ring - Teflon® - 141011
Z4500 Flange O-Ring - Viton® - 140958
Z4500 Grease Seal (Qty. 2) - 140514
Z4500 Grease Zerk - 1/8" NPT (Qty. 2) - 140862
Z4500 Hex Head Bolt - 3/8-16 X 1 1/2" (Qty. 24) - 140546
Z4500 Lubricap (Qty. 2) - 140817
Z4500 Relief Fitting - 1/8" NPT (Qty. 4) - 140725
Z4500 Repair Kit - 140197
Z4500 Rotor & Shaft Assembly - 140516
Z4500 Seal Assembly (Qty. 2) - 140199
Z4500 Sideplate (Qty. 2) - 140512
Z4500 Vane (Qty. 6) - 140198
Z4500 Vane Driver (Qty. 5) - 140513
