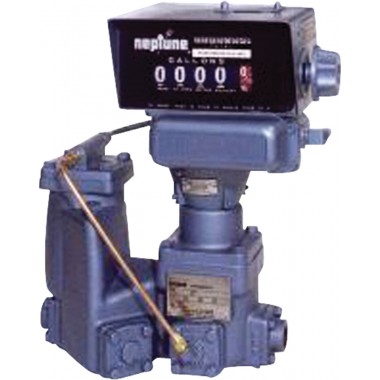

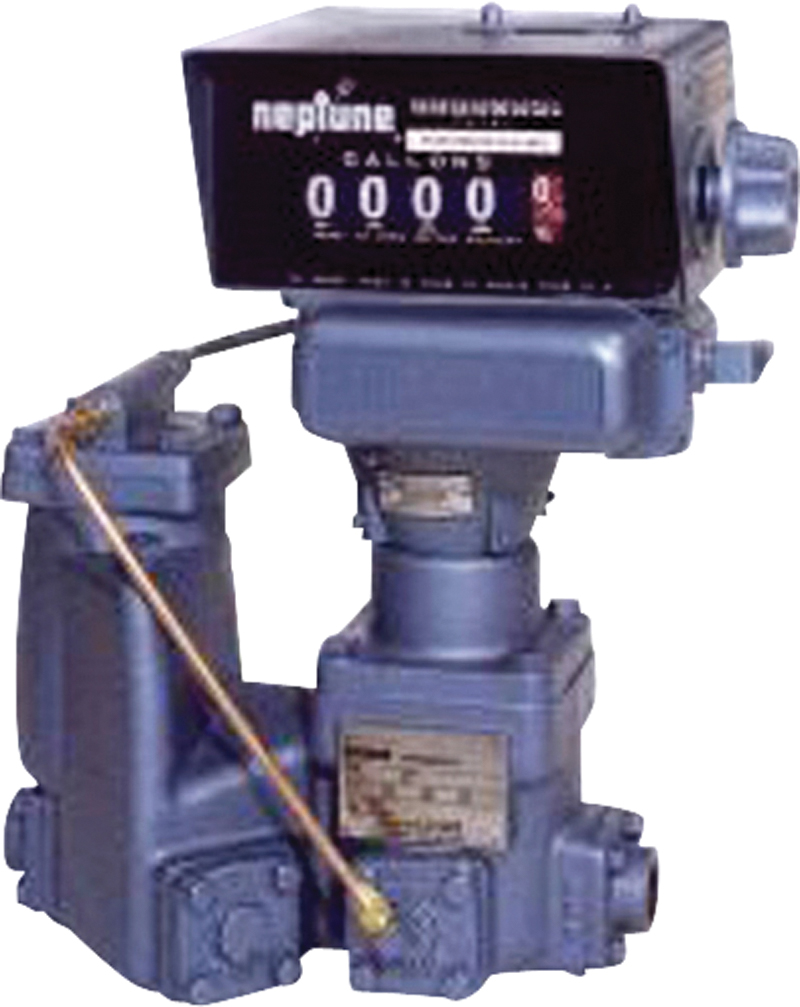

- Flow Rate GPM: 3-18
- Register Model Number: 600 w/ATC
- Temperature Compensator: Yes
- Type 4D Meter Size: 1"
- Operating Pressure: 350 PSIG
Connections: 1" FNPT (Tapped Flange)
Flow Direction: Inlet Left
1" 4D-MD w/600 Cap Screw - 7/16-14 X 1 3/16" - Drilled - 144761
1" 4D-MD w/600 Cap Screw - 7/16-14 X 1 3/16" - Undrilled - 144760
1" 4D-MD w/600 Diaphragm - 1" - 144865
1" 4D-MD w/600 Elbow - Male 1/4-90° (Flared Tube Fitting) - 146011
1" 4D-MD w/600 Gasket - Main Case - 144650
1" 4D-MD w/600 Gear Train - 43.5 Ratio - U.S. Gallons - 1" - 145174
1" 4D-MD w/600 Kit - Differential Valve - 146350
1" 4D-MD w/600 O-Ring - Cover - 146381
1" 4D-MD w/600 O-Ring - Sleeve Sealing - 146379
1" 4D-MD w/600 O-Ring - Vapor Eliminator Flange - 146386
1" 4D-MD w/600 Pin - Seal - 144866
1" 4D-MD w/600 Piston - Differential Valve - 146419
1" 4D-MD w/600 Register Complete - 600 Series - Gallons Non ATC - 1" - 146175
1" 4D-MD w/600 Register Complete - 600 Series - Gallons w/ATC - 1" - 146595
1" 4D-MD w/600 Register Cup - 144205
1" 4D-MD w/600 Roller - Control - 144850
1" 4D-MD w/600 Screw - 10-32 X 3/8" Fil Hd - 144293
1" 4D-MD w/600 Seal - U-Cup Valve - 146349
1" 4D-MD w/600 Sleeve - Screw - 146214
1" 4D-MD w/600 Sleeve - Valve - 146347
1" 4D-MD w/600 Spring - Differential Valve - 146343
1" 4D-MD w/600 Star Drive - w/Setscrew - 145464
1" 4D-MD w/600 Tube Assembly - Vapor Release - 146012
1" 4D-MD w/600 Vapor Release Float Assembly - 146008
1" Stuffing Box
1" 4D-MD Clamp Nut - 5/8-18 - 144204
1" 4D-MD Expander - U-Cup Seal - 145560
1" 4D-MD Nut - Stuffing Box - w/Bushing - 145558
1" 4D-MD O-Ring - Gear Train - 146380
1" 4D-MD Seal - U-Cup Shaft - 146344
1" 4D-MD Spring - Stuffing Box - 145562
1" ATC
1" ATC Cover - Lever Arm Mounting Plate - 146204
1" ATC Drive Fork - 145655
1" ATC Lock Washer - Split - 1/4" - 144791
1" ATC Lockwasher - Internal - #10 - 146370
1" ATC Lockwasher - Split - #10 - 144795
1" ATC O-Ring - Thermostat Bellows - 146377
1" ATC Pin - Lever Arm Lock - 146203
1" ATC Screw - 10-32 X 3/4 - Lg. Fil Hd - 144835
1" ATC Screw - 10-32 X 3/8" Fil Hd - 144293
1" ATC Screw - 10-32 X 5/8 - Fil Hd - 144794
1" ATC Screw- Cover- 10-32 X 3/4" Special - 144751
1" ATC Star Drive - w/Setscrew - 145464
1" ATC Thermostat Bellows Assembly - 145833
