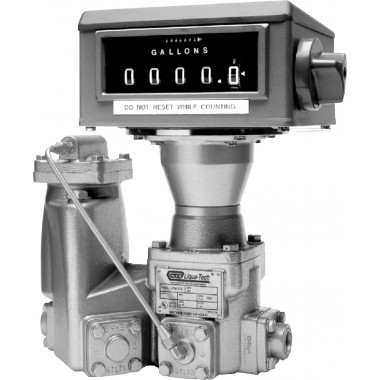

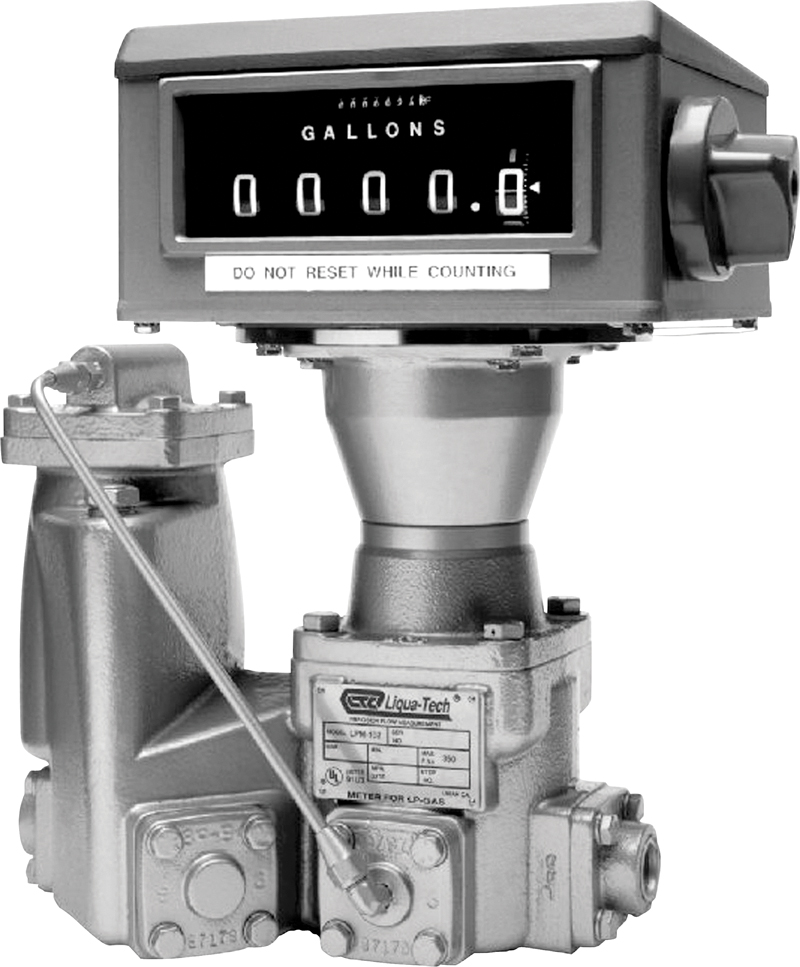

- Part Description: LPM-102 - Non-Print Register - 3/4" Inlet & Outlet
LPM-102 Cap Screw - 7/16-14 X 1 3/16" – Drilled - 144761
LPM-102 Cap Screw - 7/16-14 X 1 3/16" – Undrilled - 144760
LPM-102 Clamp Nut – 5/8-18 - 144204
LPM-102 Cover - Lever Arm Mounting Plate - 146204
LPM-102 Cover – Thermowell - 145580
LPM-102 Diaphragm – 1" - 144865
LPM-102 Drive Fork - 145655
LPM-102 Expander - U-Cup Seal - 145560
LPM-102 Float Bulb - 146009
LPM-102 Fork Driver (Short) w/Pin - 146176
LPM-102 Gasket - Main Case - 144650
LPM-102 Gear Train - 43.5 Ratio - U.S. Gallons – 1" - 145174
LPM-102 Kit - Differential Valve - 146351
LPM-102 Lock Washer - Split – 1/4" - 144791
LPM-102 Lockwasher - Internal - #10 - 146370
LPM-102 Lockwasher - Split - #10 - 144795
LPM-102 Measuring Chamber - LP-Gas - 3/4" & 1" - 144846
LPM-102 Mounting Plate & Lever Arm Assembly - 145838
LPM-102 Nut - Stuffing Box – w/Bushing - 145558
LPM-102 O-Ring – Cover - 146381
LPM-102 O-Ring - Gear Train (Buna-N) - 146375
LPM-102 O-Ring - Sleeve Sealing - 146379
LPM-102 O-Ring - Thermostat Bellows - 146377
LPM-102 O-Ring - Vapor Eliminator Flange - 146386
LPM-102 Pin - Lever Arm Lock - 146203
LPM-102 Pin – Seal - 144866
LPM-102 Register - Non-Printing – Veeder-Root - 146502
LPM-102 Register - Printing – Veeder-Root - 146500
LPM-102 Register Adapter Tower - 146183
LPM-102 Register Gear Plate Adapter - No ATC - 146177
LPM-102 Retaining Ring – 1/2" - 145783
LPM-102 Roll Pin - 1/16" X 3/8" - 146440
LPM-102 Screw - 10-32 X 3/4 - Lg. Fil Hd - 144835
LPM-102 Screw - 10-32 X 5/8 - Fil Hd - 144794
LPM-102 Screw- Cover- 10-32 X 3/4" Special - 144751
LPM-102 Seal - U-Cup Shaft - 146344
LPM-102 Seal - U-Cup Valve - 146349
LPM-102 Spring - Differential Valve - 146343
LPM-102 Spring - Ratchet Pawl - 145741
LPM-102 Spring - Stuffing Box - 145562
LPM-102 Star Drive – w/Setscrew - 145464
LPM-102 Thermostat Bellows Assembly - 145833
LPM-102 Thermowell Assembly - 145844
LPM-102 Tube Assembly - Vapor Release - 146012
