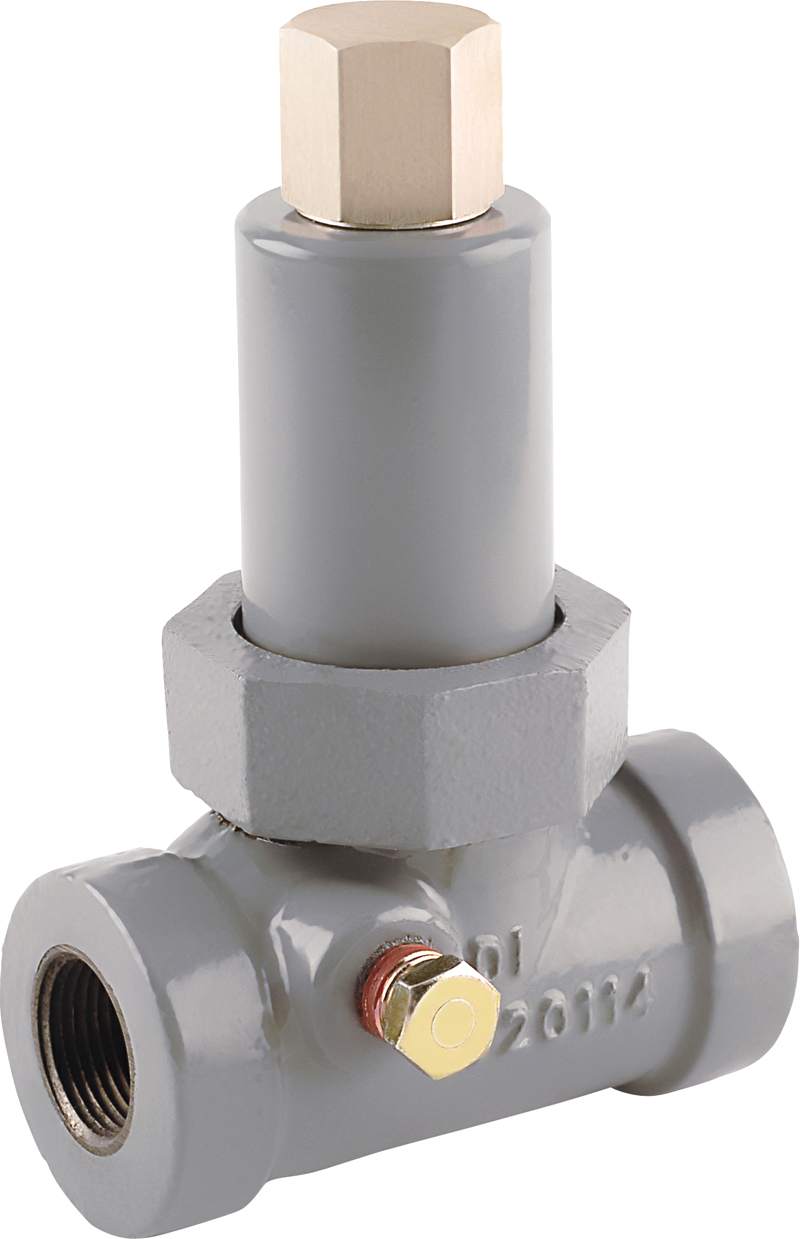

Fisher Small Pump Bypass Valves
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Pumping Capacity GPM / l/min | Body Size Inches | PSID Setting, psig / bar | PSID Range, psig / bar |
|---|---|---|---|---|---|
| 122350 | N110-06-1 | 5 to 20 / 18,9 to 75,7 | 3/4" FNPT | 50 / 3,4 | 25 to 75 / 1,7 to 5,2 |
| 122360 | N110-08-1 | 20 to 40 / 75,7 to 151 | 1" FNPT | 50 / 3,4 | 25 to 75 / 1,7 to 5,2 |
| 122355 | N110-06-2 | 5 to 20 / 18,9 to 75,7 | 3/4" FNPT | 100 / 6,9 | 75 to 150 / 5,2 to 10,3 |
| 122365 | N110-08-2 | 20 to 40 / 75,7 to 151 | 1" FNPT | 100 / 6,9 | 75 to 150 / 5,2 to 10,3 |
