- Outlet: Female POL
- Tank Connection: 3/4" MNPT
- Manufacturer: MEC
- Excess Flow: 2.6 GPM
- Fixed Level Gauge: -----

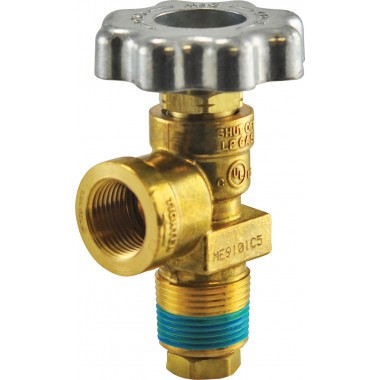

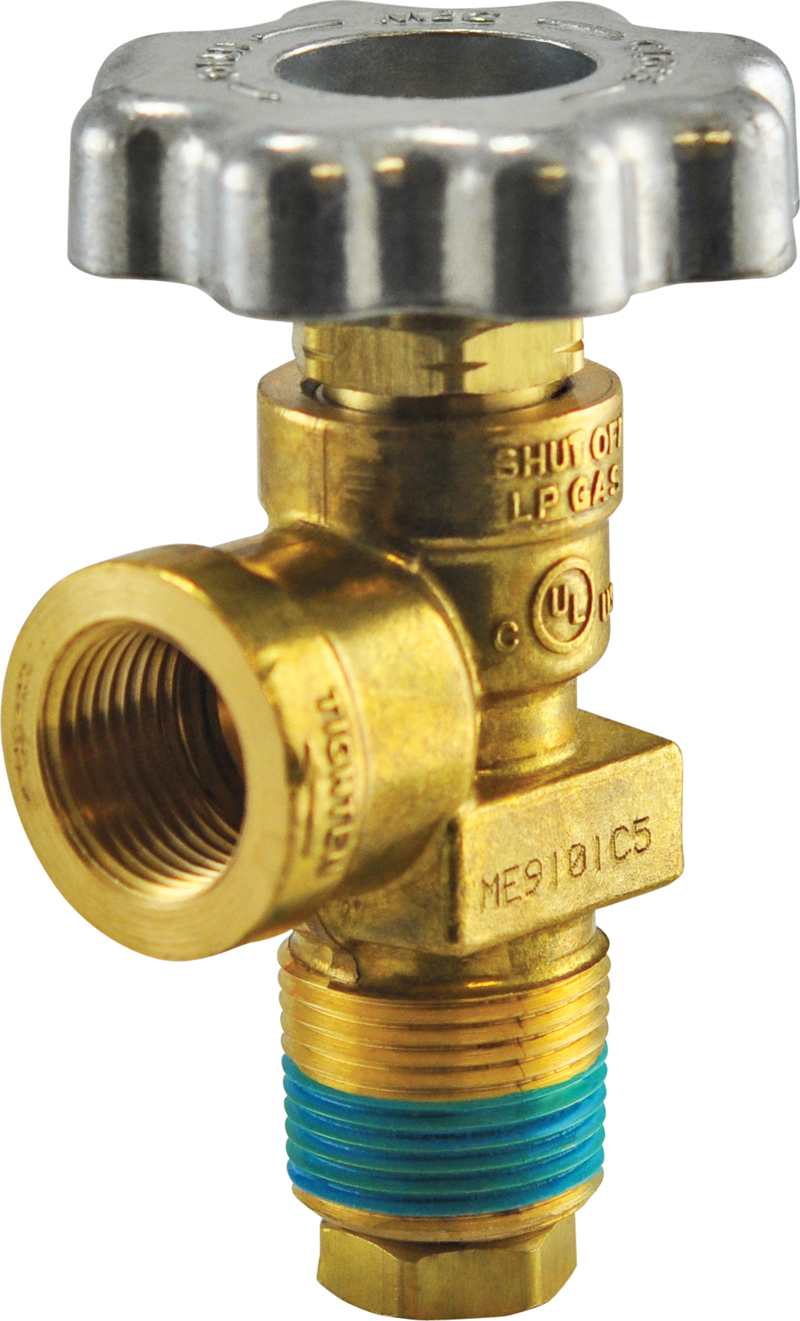

Intended for use in vapor withdrawal service for ASME tanks where more than one vessel is installed. The internal excess flow device at the inlet of the shutoff valve provides excess flow protection in the event of a downstream line break.
NOTE: These valves do not incorporate an integral pressure relief valve or double check fill valve and are intended for use in containers that have a stand-alone pressure relief valve sized to properly handle the container’s capacity and a separate double check fill valve.
Features:
• One piece forged brass body construction.
• Dual O-ring packing design.
• Easy to repair / replace bonnet assembly.
• Universal bonnet assembly.
• Industry best fill flow rate.
• Factory applied thread sealant.
• Heavy duty replaceable zinc hand wheel.
• ASME Compliant.
