- Outlet: Female POL
- Tank Connection: 3/4" MNPT
- Manufacturer: Cavagna
- Excess Flow: 1.5 GPM
- Fixed Level Gauge: 11.1" Diptube

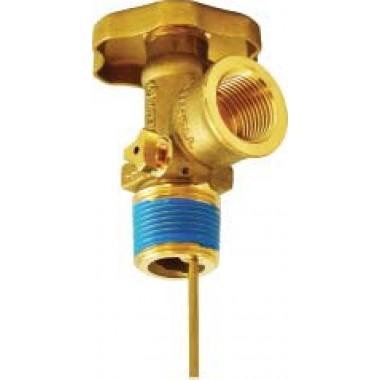

Designed especially for vapor withdrawal service on ASME and DOT containers. Since this valve has no integral pressure relief valve, it may only be used as an accessory valve on containers that have an independent pressure relief valve sufficient for that container’s capacity. This valve con also be used as a service valve on a 420 lb vertical tank or a 300 liter horizontal tank. This valve also incorporates a fixed liquid level gauge. Specify DT length when ordering.
Features:
• Double O-ring Stem Seal - Two O-rings from the stem seal for improved resistance to leakage due to dirt or temperature extremes.
• Sturdy Quality Handwheel Brass Handle - New large sturdy brass handwheel and stem threads less likely to be broken, even with rough handling. Repairable design based upon request.
• Statyic Seat Disc - Since the seat disc does not rotate, abrasive wear on the disc is eliminated, improving service life.
