- Inlet: 1 1/4" Female Left Hand Acme
- Outlet: 1/4" FNPT

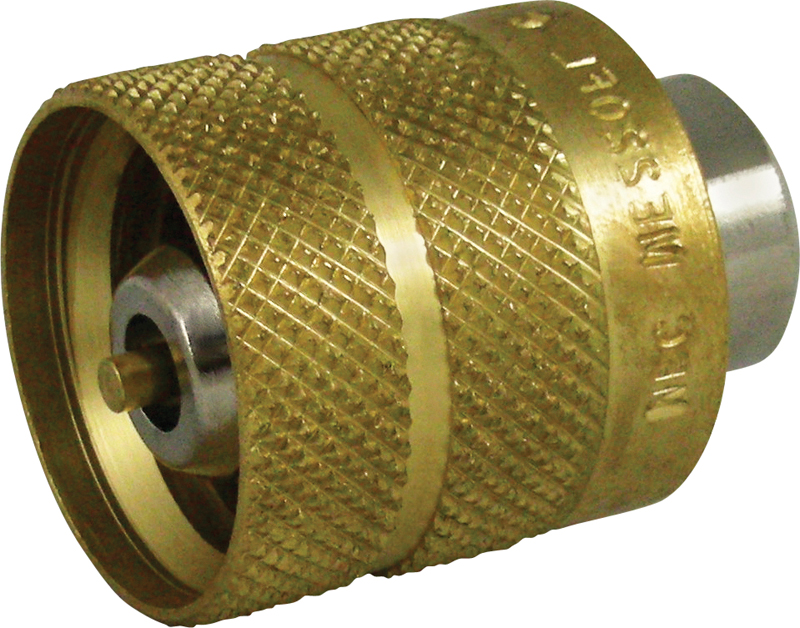

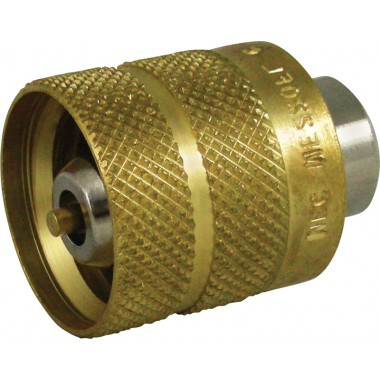

The CGA 789 quick closing couplings are designed to join the carburetion fuel line to the service valve on outdoor motor fuel propane equipment including lawn mowers, etc. The Acme threads allow for quick and repeated removal and connection with minimal product loss. The ME220ML connects directly to the service valve outlet, while the ME220FL Series connects to the motor fuel line. Both couplings have an internal safety check assembly that opens when the two are connected together. Spring force and pressure close both checks when disconnected to provide a leak free seal.
Features:
• Knurled body on the fuel line connector and filler valve allows for an easy hand tight connection even under tank pressure.
• Works in conjunction with all mating forklift connectors and filler valves.
• ME220FL series has a durable riveted valve stem, chrome plated body and wrench flats for easy installation.
• ME220ML has two seals—an O-ring to minimize product loss during connection and a gasket to seal the two connectors during filling operations.
