- Tank Size: 420# Cylinder
- Outlet Connection: Female POL
- Tank Connection: 1" MNGT
- Relief Setting: 375 PSIG
- Fixed Level Gauge: 11.7"
- Filler Connection: 1 3/4" Male Acme

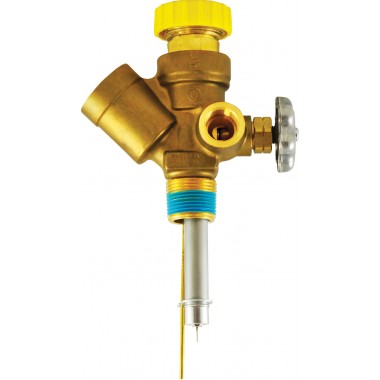

Indended for use in vapor withdrawal service for DOT or ASME containers ranging from 420 lbs. to 100 gallons LPG capacity as fuel line shutoff valves in combination with a fill and vapor relief valve. Ideal for on-site filling without interruption of service by combining all functions into a single 1” tank opening.
Features:
• One piece forged brass body construction.
• Integral Fill Valve.
• Easy to repair / replace bonnet assembly.
• Integral 375 PSI or 250 PSI relief valve.
• Heavy duty replaceable zinc hand wheel.
• 1/8” FNPT plugged test port.
• Liquid splash tube to prevent liquid in vapor opening.
• Optional MEJ401SC self-cleaning LE fixed liquid level vent screw.
• Female POL vapor outlet with shutoff.
Replacement for Sherwood PVE2035AT-11.7.
