- Outlet: Male CGA555
- Tank Size: 100# Cylinder
- Tank Connection: 3/4" MNGT
- Relief Setting: 375 PSIG
- Fixed Level Gauge: 11.6" Diptube

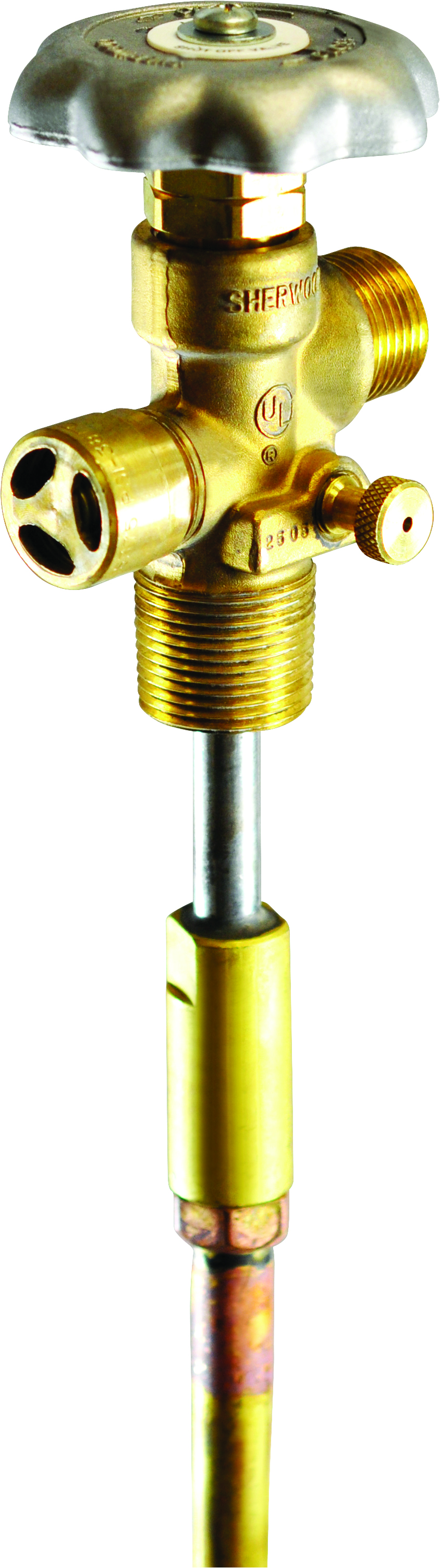

Indended for use in liquid withdrawal service for DOT containers up to 100 lb. LPG capacity as fuel line shutoff valves in combination with a liquid fill and vapor relief valve.
Features:
• One piece forged brass body construction.
• Easy to repair / replace bonnet assembly.
• Integral 375 PSI relief valve.
• Heavy duty replaceable zinc handwheel.
• Optional MEJ401SC self-cleaning LE fixed liquid level vent screw.
• Male CGA555 liquid outlet with shutoff.
• Integral 1.0 GPM/LPG excess flow valve.
• Diptubes can be cut to length for specific tank needs.
Replacement for Sherwood PVE3250CLM-375.
