- Outlet: 3 1/4" Male Acme
- Tank Connection: 2" MNPT
- Back Check Style: Double
Propane Flow Differential Pressure 10 PSI: 195
Propane Flow Differential Pressure 20 PSI: 296
Propane Flow Differential Pressure 30 PSI: 416

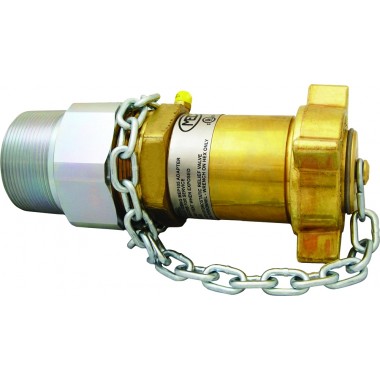

Marshall Excelsior High Flow Double Back Check Valves provide back flow protection to container openings or liquid lines where flow is intended in one direction. The valve is normally held closed until pressure activates the valve when flow is directed into piping or containers causing the double back check to open. When flow stops or reverses, both checks return to the closed position. All MEC High Flow Double Back Check Valves are supplied with the correct ACME cap and chain assembly, as well as factory installed hydrostatic relief protection.
Features:
• Primary Seat - Creates metal to metal seating surface.
• Secondary Seat - bonded nitrile soft seat for a leak free seal.
• Up to 20% More Flow than nearest competitor.
• Maximum product flow achieved by full port and stem travel design.
• All models feature stainless steel stem, spring and valve guide in body check assembly.
• Built in hydrostatic relief valve.
• For use with LP Gas ONLY.
