- Outlet: 3/8" MNPT
- Flow Rate: 2.6 GPM
- Case Quantity: 60 Pcs.
- Tank Connection: 3/4" MNPT
- Manufacturer: MEC

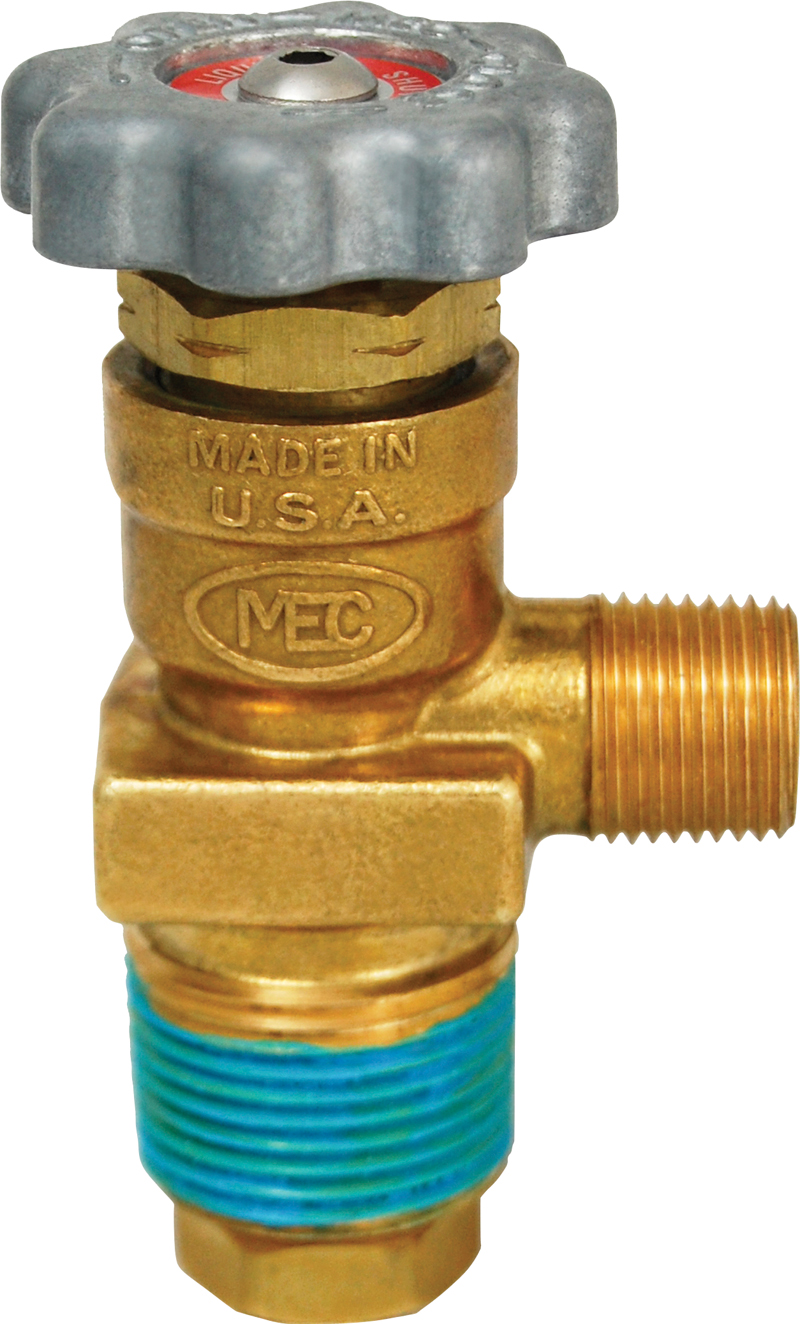

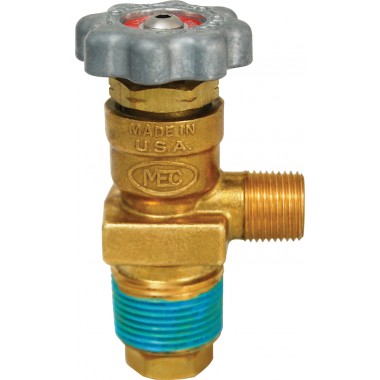

Intended for vapor or liquid withdrawal service on DOT forklift or engine fuel containers.
NOTE: These valves do not incorporate an integral pressure relief valve and are intended for use in containers that have a separate pressure relief valve to adequately handle the container’s capacity. Each of these valves incorporate an excess flow valve at the tanks inlet end to prevent excessive product loss in the event of a downstream fuel line failure. For the excess flow device to perform properly the service valve must be in the full open and back seated position.
Features:
• One piece forged brass body construction.
• Dual O-ring packing design.
• Easy to repair / replace bonnet assembly.
• Universal bonnet assembly.
• Industry best fill flow rate.
• Factory applied thread sealant.
• Replaceable, heavy duty zinc hand wheel featuring a universal design.
Replacement for Sherwood PVE1427B.
