- Outlet: 3/8" MNPT
- Flow Rate: 2.6 GPM
- Case Quantity: 35 Pcs.
- Tank Connection: 3/4" MNGT
- Manufacturer: Cavagna

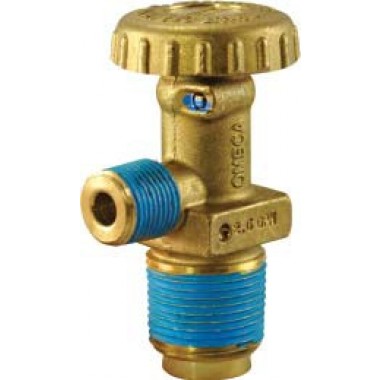

These valves are designed for vapor or liquid withdrawal service on DOT fork lift truck containers. These valves are equipped with an excess flow limiter with different settings. Since these valves do not have an integrated pressure relief valve, they may only be used as an accessory valve on containers that have an independent PRV suitable for that containers capacity.
Features:
• Valves are supplied with pre-applied sealant on the inlet & the outlet.
• Double O-ring Stem Seal - Two O-rings form the stem seal for improved resistance to leakage due to dirt or temperature extremes.
• Tamperproof Design - Travel stop keeps handwheel from being removed, helps to prevent tampering.
Also, prevents removal of the stem and provides an additional seal against gas leakage..
• Sturdy Quality Handwheel Brass Handle - Large, sturdy brass handwheel and stem threads less likely to be broken, even with rough handling.
• Static Seat Disc - Since the seat disc does not rotate, abrasive wear on the disc is eliminated, improving service life.
• Recessed Excess Flow Valve - The recessed excess flow valve helps reduce the possibility of mechanical damage or fouling from excess pipe compound.
