- Inlet: 1 1/4" Female Acme
- Outlet: 1/4" FNPT
- Case Quantity: 50 Pcs.
- Manufacturer: MEC

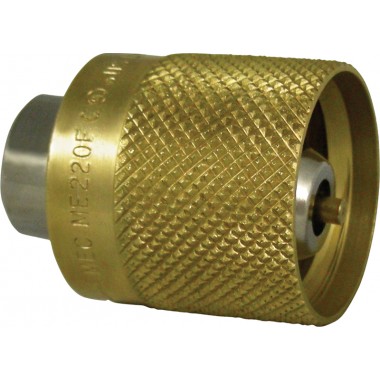

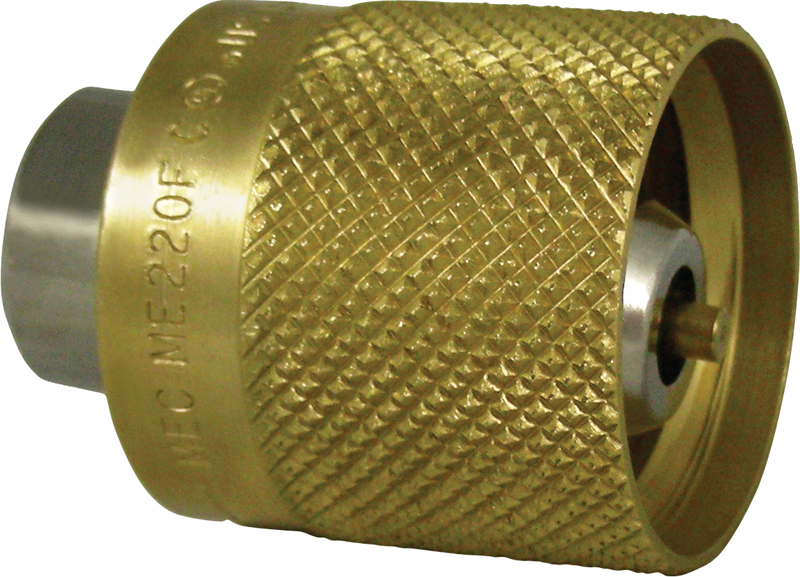

The CGA 790 quick closing couplings (ME220 Series) are designed to join the carburetion fuel line to the service valve on motor fuel type applications. The Acme threads allow for quick and repeated removal and connection with minimal product loss. The ME220M connects directly to the service valve outlet, while the ME220F Series connects to the motor fuel line. Both couplings have an internal safety check assembly that opens when the two are connected together. Spring force and pressure close both checks when disconnected to provide a leak free seal. The ME220M will fit any refill adapter on the market.
Features:
• Knurled body on the fuel line connector and filler valve allows for an easy hand tight connection even under tank pressure.
• Works in conjunction with all mating forklift connectors and filler valves.
• ME220F series has a durable riveted valve stem, chrome plated body and wrench flats for easy installation.
• ME220M has two seals—an O-ring to minimize product loss during connection and a gasket to seal the two connectors during filling operations.
Replacement for Sherwood PA1428F.
