- Coupling Type: Clamp Type B Swivel Nut Outlet
- Hose Barb: 3/4"
- Outlet Size: 1 3/4" F. Acme

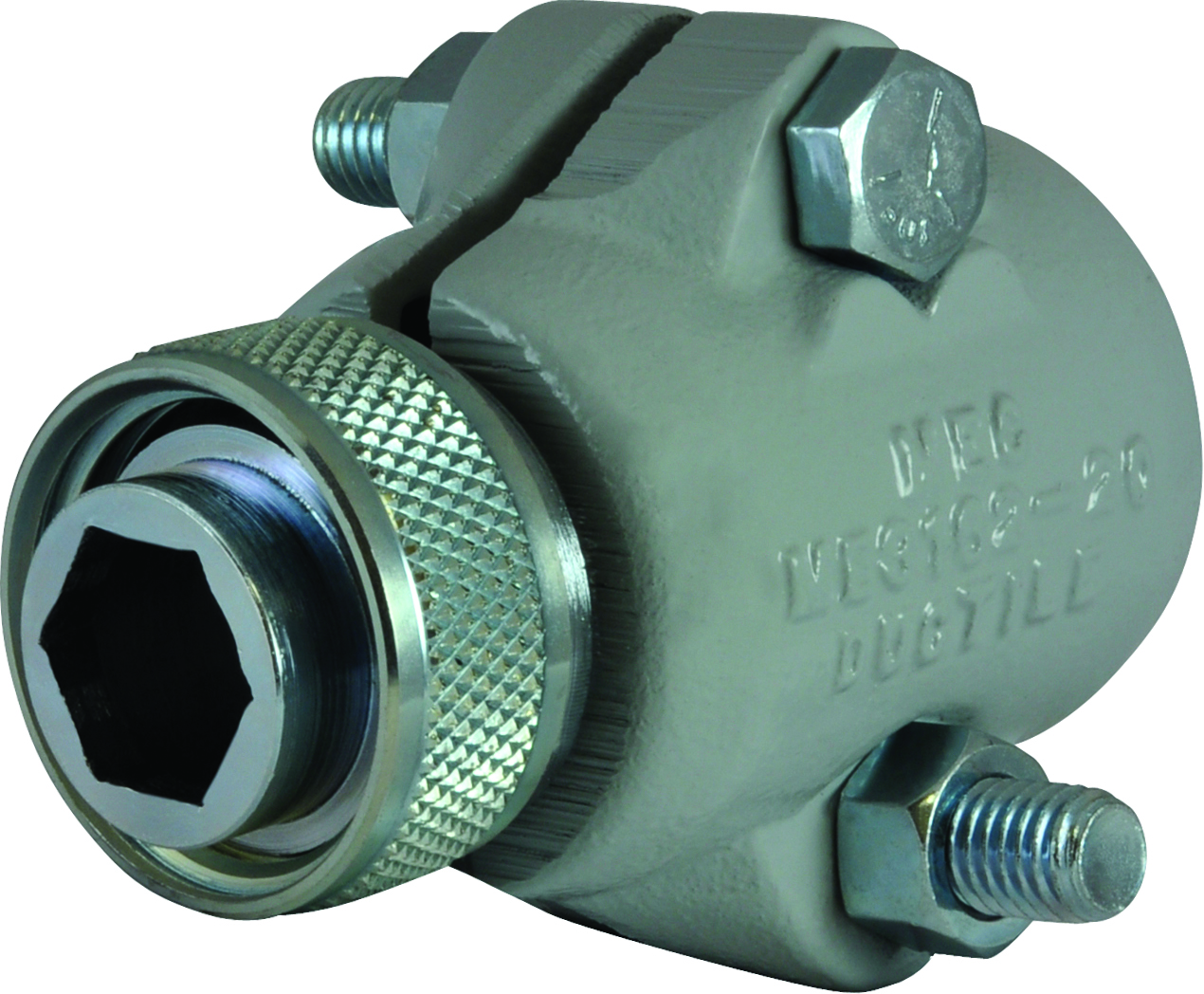

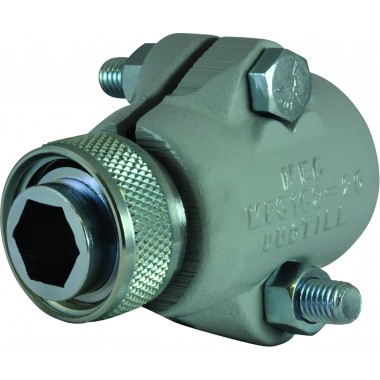

These hose couplings are user friendly and can be easily installed in the field. A steel or ductile hose barb is inserted into the hose and two outer clamps, positioned on the outside of the hose, have a boss to keep the bolts from rotating while the clamps compress the hose for a leak free seal.
Note: Clamps must be installed with clamp lip fully engaged into flange groove on hose barb body.
Features:
• Hose barbs constructed of zinc plated steel or ductile iron with automotive grade powder coat finish.
• All hose clamps are ductile iron with automotive grade powder coat finish.
• Optional integrated female Acme swivel eliminates weight of additional couplings.
• Includes hose barb and two clamps, nuts and bolts.
