- Tank Connection: 3" MNPT
- Outlet Connection: 3" FNPT
- Actuation: Rotary With ME226
- Liquid Closing Flow Value: 500 GPM

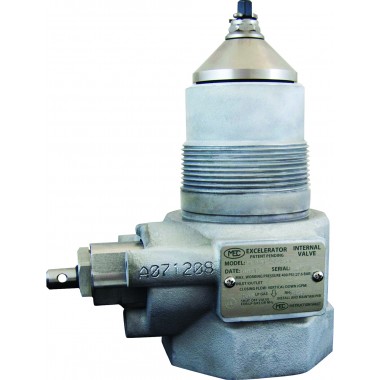

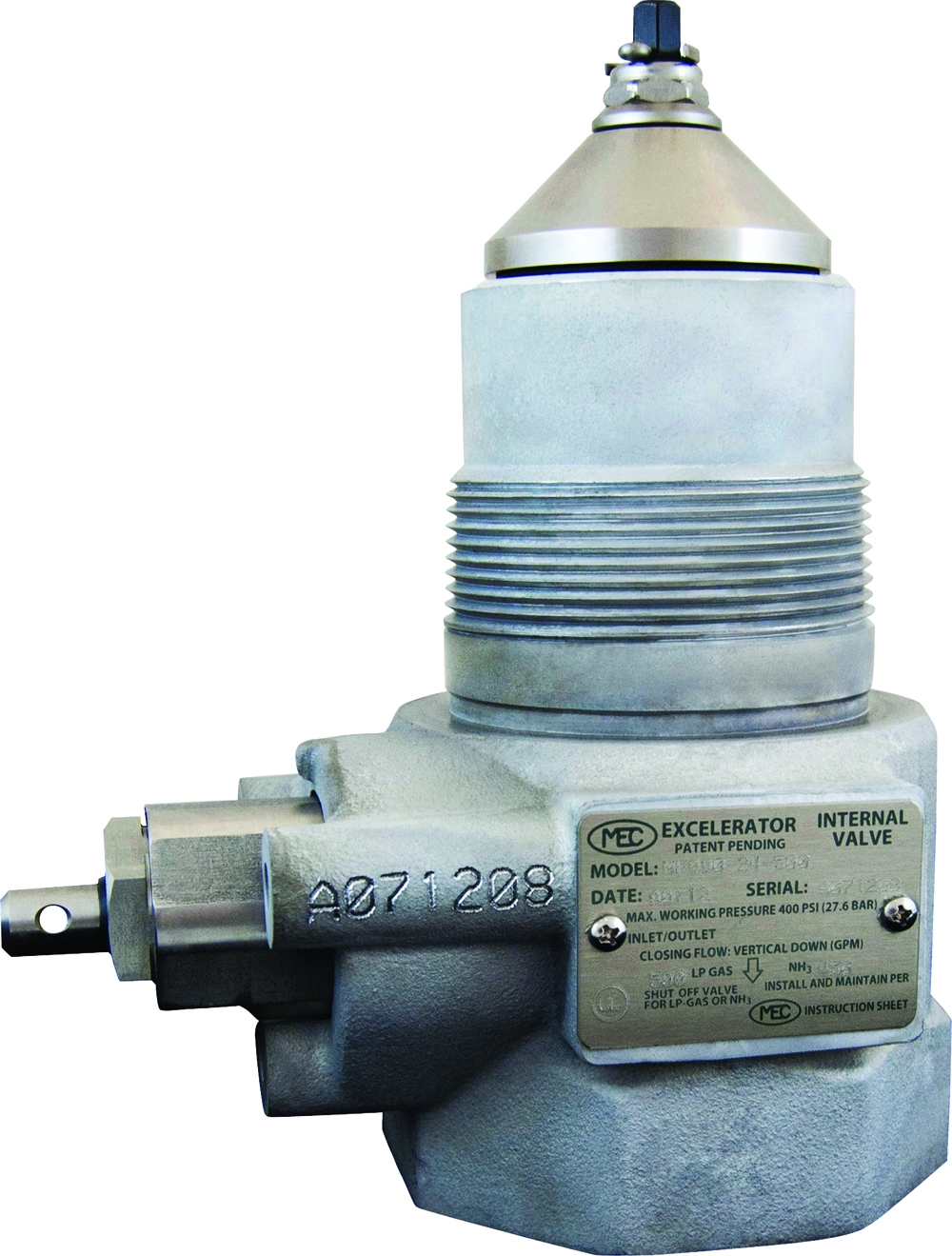

Intended for use on transport trucks and large storage tanks with 3” threaded connections in directional or bi-directional flow applications. Provides both manual shut-down and excess flow closing in the event of the piping being seperated from the valve. Can be equipped with manual latch, pneumatic or rotary actuator open/ closing devices. All valve models are equipped with a breakaway feature in the cast body which permits the piping to shear off in the event of side impact, leaving the valve poppet intact and protecting the tank from catastrophic product loss. For liquid or vapor service applications.
Features:
• Durable ductile body with cadmium surface plating.
• All stainless internal component construction.
• One piece threaded packing gland.
• Precision machined hard coated stem.
• Fully retained nitrile seat disc.
• Largest variety of excess flow closing values.
• Roller cam actuation.
• Industry’s fastest bleed time.
• Removable data plate.
• Industry’s easiest valve to service.
• Standard construction utilizes nitrile seals.
• Available with Neoprene, Viton®, or Kalrez® seals.
• UL LISTED for LPG & NH3 service.
• RulonTM bearings on stem and stub shafts.
Kalrez® & Viton® are a registered Trademarks of DuPont Performance Elastomers.
ME990-16 Air Actuator -150576

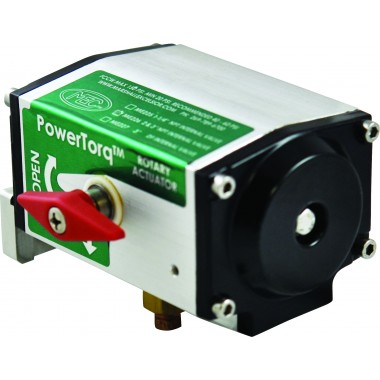

ME990-16 Rotary Actuator -150582
ME990-16 Manual Latch Assembly -153540
ME990-16 Cable Control Release w/50' Cable -153545
ME990-16 Cable Control Release - Only -153550
ME990-16 Stem Packing Gland Assembly -153585
ME990-16 Stem Packing Repair Kit -153580
ME990-16 Operating Lever - Standard -153560
ME990-16 Excess Flow Spring - 100 GPM (Yellow) -153635
ME990-16 Excess Flow Spring - 160 GPM (Green) -153640
ME990-16 Excess Flow Spring - 260 GPM (Blue) -153645
ME990-16 Seal Repair Kit -153630
ME990-16 Viton Seal Repair Kit -153612
ME990-16 Complete Rebuld Kit -153625
ME990-16 Fusible Link -153565
