- Tank Connection: 3" MNPT
- Outlet Connection: 3" FNPT
- Actuation: Valve Only
- Liquid Closing Flow Value: 400 GPM

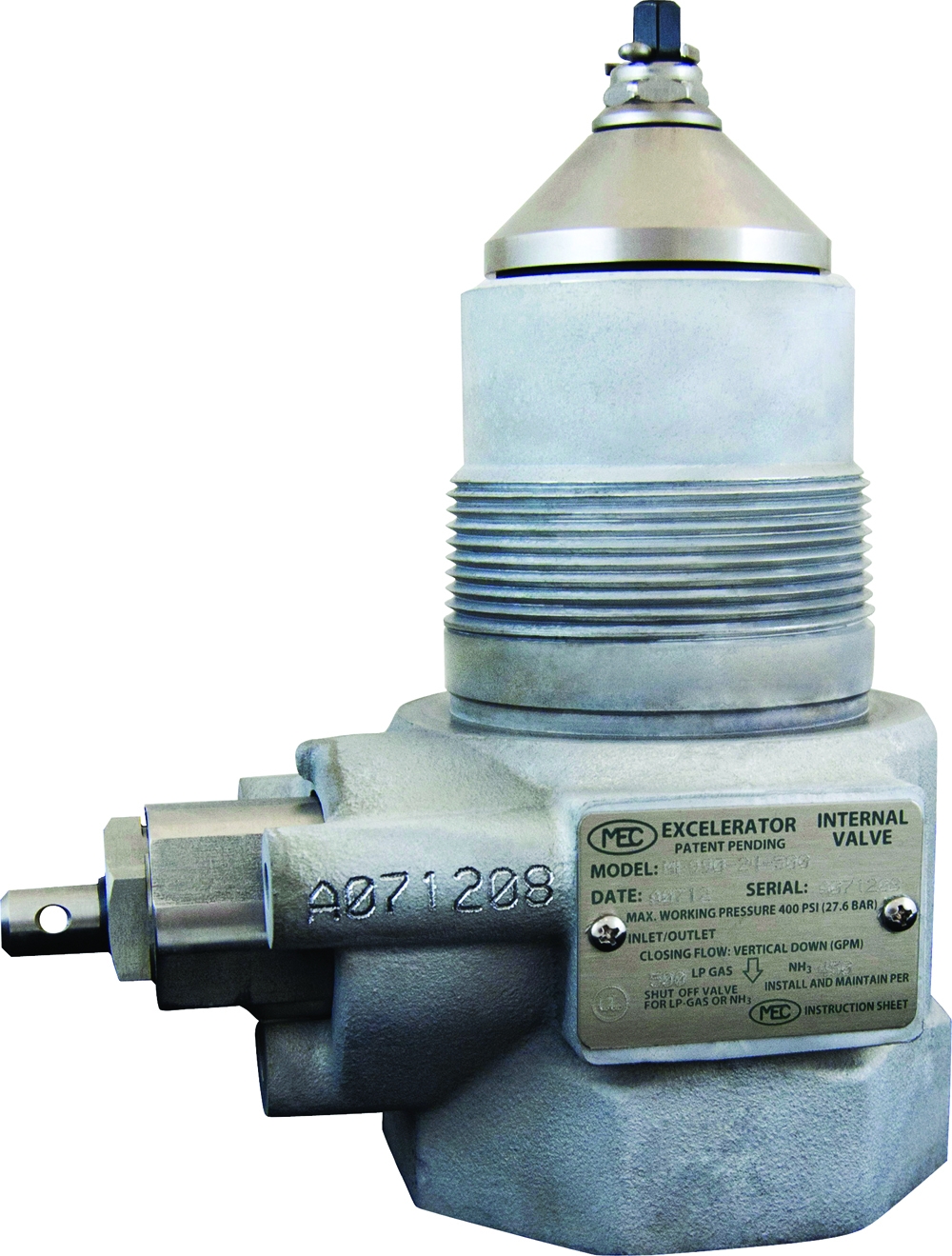

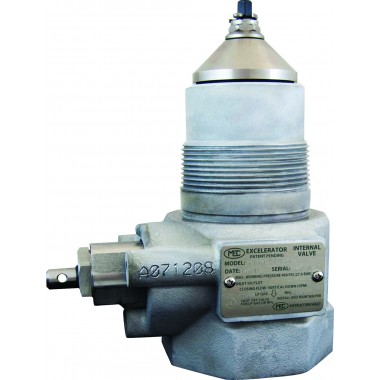

Intended for use on transport trucks and large storage tanks with 3” threaded connections in directional or bi-directional flow applications. Provides both manual shut-down and excess flow closing in the event of the piping being seperated from the valve. Can be equipped with manual latch, pneumatic or rotary actuator open/ closing devices. All valve models are equipped with a breakaway feature in the cast body which permits the piping to shear off in the event of side impact, leaving the valve poppet intact and protecting the tank from catastrophic product loss. For liquid or vapor service applications.
Features:
• Durable ductile body with cadmium surface plating.
• All stainless internal component construction.
• One piece threaded packing gland.
• Precision machined hard coated stem.
• Fully retained nitrile seat disc.
• Largest variety of excess flow closing values.
• Roller cam actuation.
• Industry’s fastest bleed time.
• Removable data plate.
• Industry’s easiest valve to service.
• Standard construction utilizes nitrile seals.
• Available with Neoprene, Viton®, or Kalrez® seals.
• UL LISTED for LPG & NH3 service.
• RulonTM bearings on stem and stub shafts.
Kalrez® & Viton® are a registered Trademarks of DuPont Performance Elastomers.
ME990-24 Air Actuator - 150576
ME990-24 Rotary Actuator - 150582
ME990-24 Manual Latch Assembly - 153540
ME990-24 Cable Control Release w/50' Cable - 153545
ME990-24 Cable Control Release - Only - 153550
ME990-24 Stem Packing Gland Assembly - 153585
ME990-24 Stem Packing Repair Kit - 153580
ME990-24 Operating Lever - Standard - 153560
ME990-24 Excess Flow Spring - 175 GPM (Purple) - 153590
ME990-24 Excess Flow Spring - 250 GPM (Black) - 153595
ME990-24 Excess Flow Spring - 375 GPM (Yellow) - 153605
ME990-24 Excess Flow Spring - 400 GPM (Red) - 153610
ME990-24 Excess Flow Spring - 475 GPM (Silver) - 153615
ME990-24 Excess Flow Spring - 500 GPM (Gold) - 153620
ME990-24 Seal Repair Kit - 153575
ME990-24 Complete Rebuild Kit - 153570
ME990-24 Fusible Link - 153565
