- Tank Connection: 2" 300 Lb. Modified Single Flange
- Outlet Connection: 2" FNPT
- Actuation: Valve Only
- Liquid Closing Flow Value: 160 GPM

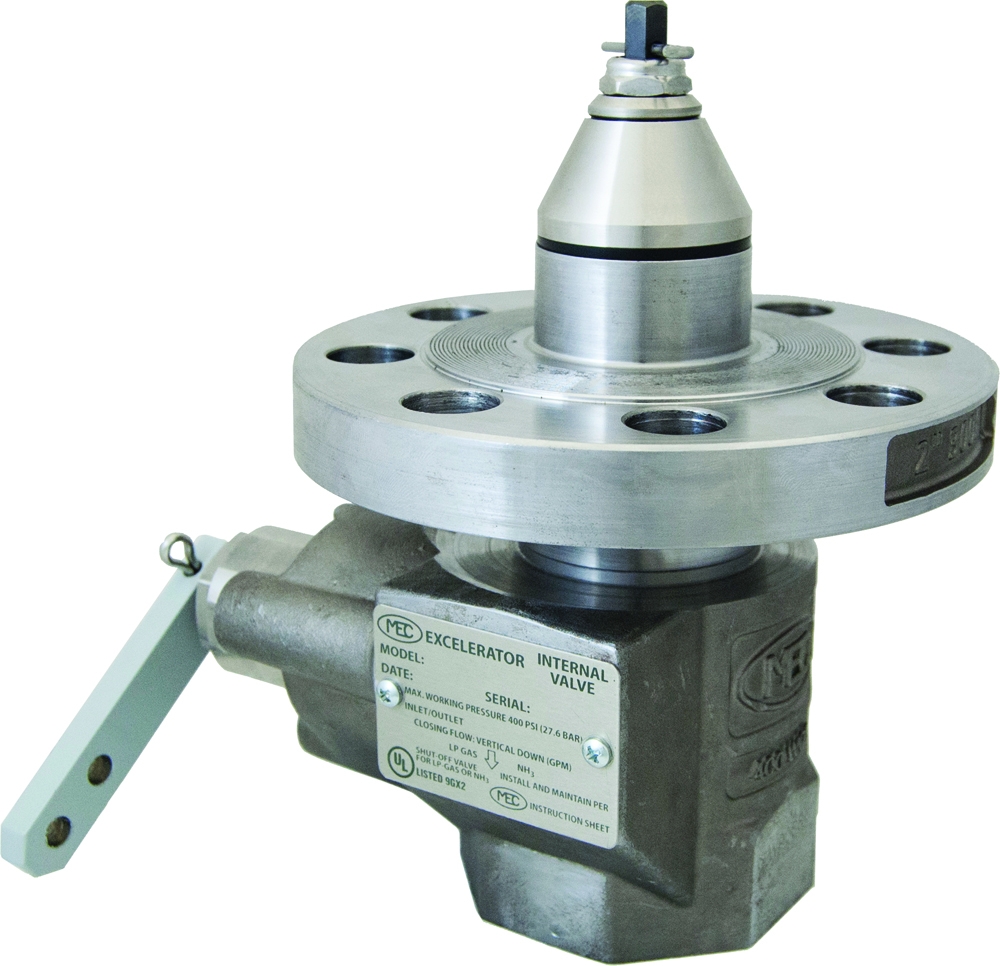

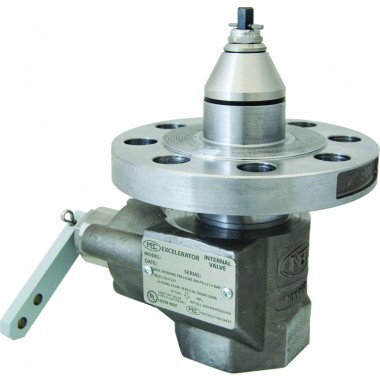

Intended for use on bobtail delivery trucks, transport trucks and large storage tanks with 2” flanged connections in directional or bi-directional flow applications. Provides both manual shut-down and excess flow closing in the event the of the piping being seperated from the valve. Can be equipped with manual latch, pneumatic or rotary actuator open/ closing devices. All valve models are equipped with a break-away feature in the cast body which permits the pump or piping to shear off in the event of side impact, leaving the valve poppet intact and protecting the tank from catastrophic product loss.
Features:
• Durable steel body with cadmium surface plating.
• All stainless internal component construction.
• One piece threaded packing gland.
• Precision machined hard coated stem & stem guide.
• Fully retained nitrile seat disc.
• Largest variety of excess flow closing values.
• Corrosion resistant sleeved flange bolt holes.
• Xylan coated corrosion resistant mounting studs.
• Roller cam actuation.
• Industry’s fastest bleed time.
• Removable data plate.
• Industry’s easiest valve to service.
• Standard construction utilizes nitrile seals.
• Available with Neoprene, Viton®, or Kalrez® seals.
• Available with 316 Stainless Steel bodies.
• UL LISTED for LPG & NH3 service.
• RulonTM bearings on stem and stub shafts.
Kalrez® & Viton® are a registered Trademarks of DuPont Performance Elastomers.
ME990S-2F-16 Air Actuator - 150576
ME990S-2F-16 Rotary Actuator - 150582
ME990S-2F-16 Manual Latch Assembly - 153540
ME990S-2F-16 Cable Control Release w/50' Cable - 153545
ME990S-2F-16 Cable Control Release - Only - 153550
ME990S-2F-16 Stem Packing Gland Assembly - 153585
ME990S-2F-16 Stem Packing Repair Kit - 153580
ME990S-2F-16 Operating Lever - Standard - 153560
ME990S-2F-16 Excess Flow Spring - 100 GPM (Yellow) - 153635
ME990S-2F-16 Excess Flow Spring - 160 GPM (Green) - 153640
ME990S-2F-16 Excess Flow Spring - 260 GPM (Blue) - 153645
ME990S-2F-16 Seal Repair Kit - 153630
ME990S-2F-16 Viton Seal Repair Kit - 153612
ME990S-2F-16 Complete Rebuld Kit - 153625
ME990S-2F-16 Fusible Link - 153565
ME990S-2F-16 Mounting Sleeve/Bushing (Qty. 8) - 153335
ME990S-2F-16 Flange Nut (Qty. 8) - 151218
ME990S-2F-16 Flange Bolt (Qty. 8) - 154100
ME990S-2F-16 Flange Gasket - 127985
]
