- Tank Connection: 1 1/4" MNPT
- Outlet Connection: 1 1/4" FNPT
- Actuation: Valve Only
- Liquid Closing Flow Value: 55 GPM

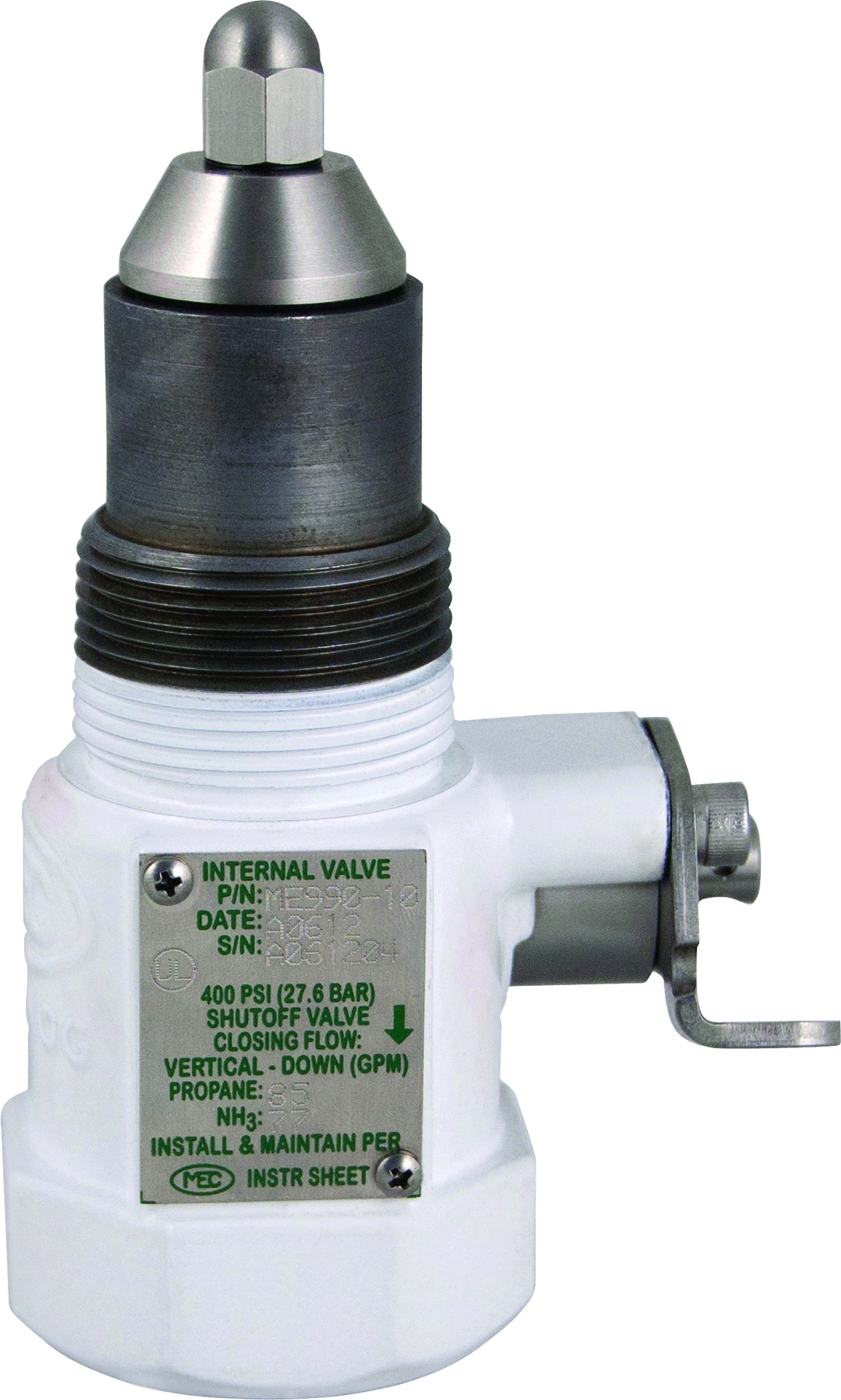

Intended for use on bobtail trucks and storage tanks with 1-1/4” threaded connections in directional or bi-directional flow applications. Provides both manual shut-down as well as excess flow closing in the event of the piping being seperated from the valve. Can be equipped with manual latch, pneumatic or rotary actuator, open/ closing devices. All valve models are equipped with a break-away feature in the cast body which permits the piping to shear off in the event of side impact, leaving the valve poppet intact and protecting the tank from catastrophic product loss. For liquid or vapor service applications.
Features:
• All 316 stainless steel body for maximum durability and corrosion resistence.
• All stainless internal component construction.
• Precision machined hard coated stem.
• Fully retained nitrile seat disc.
• Large variety of excess flow closing values.
• Roller cam actuation.
• Industry’s fastest bleed time.
• Removable data plate.
• Industry’s easiest valve to service.
• Standard construction utilizes nitrile seals.
• Available with Neoprene, Viton®, or Kalrez® seals.
• UL LISTED for LPG & NH3 service.
• Hexagonal installation flats to fit standard 2-3/8" hex socket wrench.
• RulonTM bearing on stub shaft.
Valves are available with Kalrez®, Neoprene, & Viton® Trims.
Kalrez® & Viton® are a registered Trademarks of DuPont Performance Elastomers.
ME990-10 Air Actuator - 150581
ME990-10 Rotary Actuator - 150690
ME990-10 Manual Latch Assembly - 153980
ME990-10 Cable Control Release w/50' Cable -product-detail.php?pid=14022&cid=1262">153545
153545ME990-10 Cable Control Release - Only - 153550
ME990-10 Stem Packing Gland Assembly - 154000
ME990-10 Stem Packing Repair Kit - 153995
ME990-10 Operating Lever - 154020
ME990-10 Excess Flow Spring - 35 GPM (Blue) - 154005
ME990-10 Excess Flow Spring - 55 GPM (Green) - 154010
ME990-10 Excess Flow Spring - 85 GPM (Orange) - 154015
ME990-10 Seal Repair Kit - 153990
ME990-10 Viton Seal Repair Kit - 153993
ME990-10 Complete Rebuld Kit - 153985
ME990-10 Fusible Link - 153565
