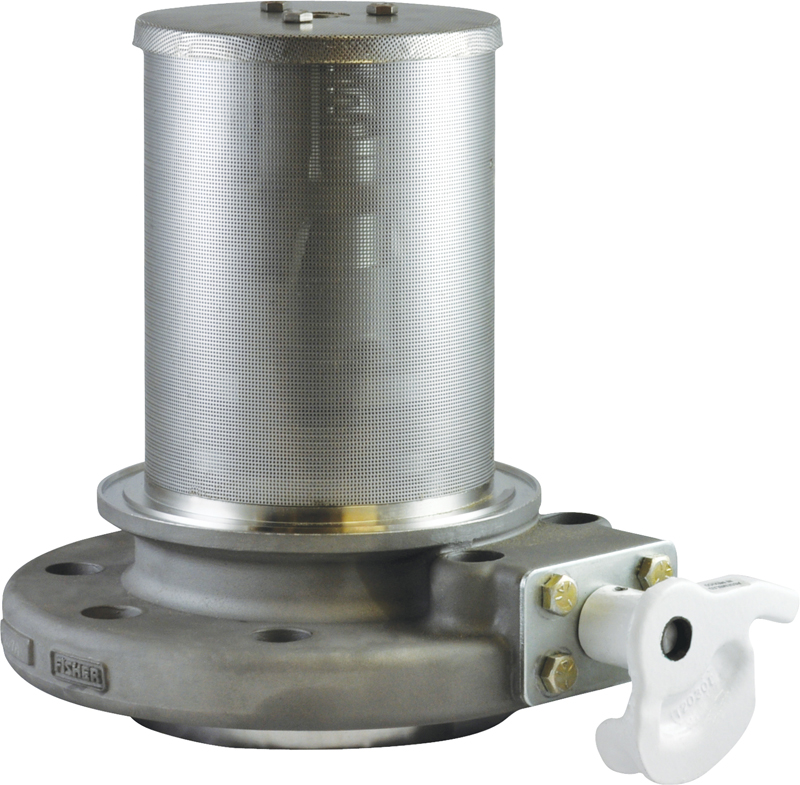

Fisher 4" Flanged Internal Valves
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Actuation | Tank Connection | Outlet Connection |
|---|---|---|---|---|
| 120400 | C404-32-400 | Cable | 4" CL300 ASME RF Modified (5.875" Dia. Bore) | 4" CL300 ASME Flange |
| 120405 | C404-32-600 | Cable | 4" CL300 ASME RF Modified (5.875" Dia. Bore) | 4" CL300 ASME Flange |
| 120406 | C404-32-800 | Cable | 4" CL300 ASME RF Modified (5.875" Dia. Bore) | 4" CL300 ASME Flange |
| 120408 | C404-32-1000 | Cable | 4" CL300 ASME RF Modified (5.875" Dia. Bore) | 4" CL300 ASME Flange |
| 120418 | C404A-32-340 | Air With P614 | 4" CL300 ASME RF Modified (5.875" Dia. Bore) | 4" CL300 ASME Flange |
| 120415 | C404A-32-400 | Air With P614 | 4" CL300 ASME RF Modified (5.875" Dia. Bore) | 4" CL300 ASME Flange |
| 120416 | C404A-32-600 | Air With P614 | 4" CL300 ASME RF Modified (5.875" Dia. Bore) | 4" CL300 ASME Flange |
| 120417 | C404A-32-800 | Air With P614 | 4" CL300 ASME RF Modified (5.875" Dia. Bore) | 4" CL300 ASME Flange |
| 120420 | C404M-32-400 | Manual With P313 | 4" CL300 ASME RF Modified (5.875" Dia. Bore) | 4" CL300 ASME Flange |
| 120425 | C404M-32-600 | Manual With P313 | 4" CL300 ASME RF Modified (5.875" Dia. Bore) | 4" CL300 ASME Flange |
| 120426 | C404M-32-800 | Manual With P313 | 4" CL300 ASME RF Modified (5.875" Dia. Bore) | 4" CL300 ASME Flange |
