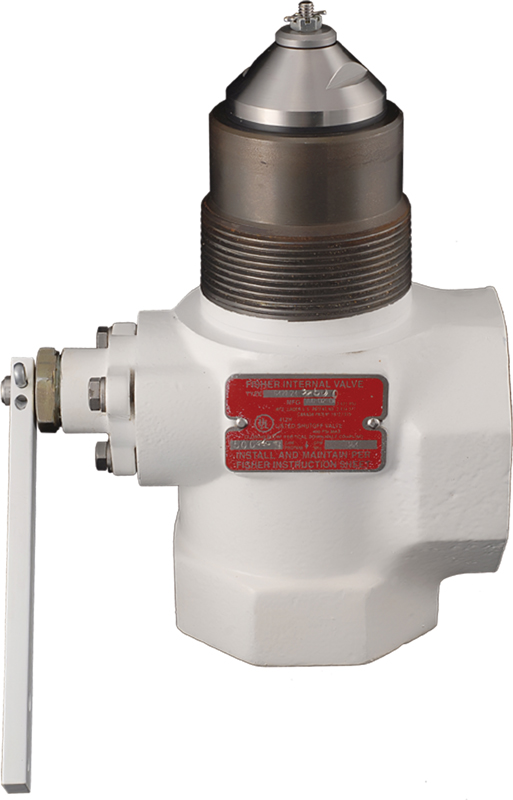

C471-16-105

Item Number120301
  • Connections Inlet X Outlet: 2" MNPT X2" FNPT

  • Closing Flow GPM / l/min Propane * Half Coupling: 105 / 397

  • Closing Flow GPM / l/min Propane * Full Coupling: 60 / 227

  • Vapor Capacity SCFH / SCMH Propane * 25 psig / 1,7 bar Inlet: 26,100 / 739

  • Vapor Capacity SCFH / SCMH Propane * 100 psig / 6,9 bar Inlet: 45,000 / 1,274

C471-16 Air Actuator - 122934

C471-16 Bleed Disc - Ethylene Propylene (EPDM) - 129320

C471-16 Bleed Disc - Kalrez® (FFKM) - 129318

C471-16 Bleed Disc - Neoprene (CR) - 129319

C471-16 Bleed Disc - Nitrile (NBR) - 129412

C471-16 Bleed Disc - Teflon® (PTFE) - 129316

C471-16 Bleed Disc - Viton® (FKM) - 129317

C471-16 Bleed Disc Retainer - Stainless Steel - 129410

C471-16 Bleed Disc Seat - Stainless Steel - 129411

C471-16 Bonnet Nut - Steel - 128688

C471-16 Bushing - Teflon® (PTFE) - 125800

C471-16 Cable Latch - 122912

C471-16 Cam - Stainless Steel - 129031

C471-16 Cam - Steel - 128694

C471-16 Cap Screw - Stainless Steel - 129032

C471-16 Cap Screw - Steel - 126282

C471-16 Cap Screw - Steel (Qty. 3) - 129063

C471-16 Closing Spring - Stainless Steel - 128646

C471-16 Cotter Pin - Stainless Steel - 129056

C471-16 Cotter Pin for Lever - 127092

C471-16 Disc Holder - Stainless Steel - 129229

C471-16 Disc Retainer - Steel/Stainless Steel - 129227

C471-16 Drive Screw - 18-8 Stainless Steel (Qty. 2) - 126037

C471-16 Excess Flow Spring - 105 GPM (Green) - 129209

C471-16 Excess Flow Spring - 150 GPM (Yellow) - 128640

C471-16 Excess Flow Spring - 250 GPM (Pink) - 128967

C471-16 Female Packing Adaptor - Teflon® (PTFE) - 127113

C471-16 P134T Fusible Link - 122640

C471-16 Gland - Steel - 129176

C471-16 Gland Assembly & O-Ring - Nitrile (NBR) - 129171

C471-16 Gland O-Ring - Nitrile (NBR) - 128697

C471-16 Guide - Iron - 129750

C471-16 Hex Nut - Plated Steel - 129200

C471-16 Liner Bushing - Teflon® (PTFE) - 128664

C471-16 Liner Bushing - Teflon® (PTFE) - 128682

C471-16 Main Disc - Ethylene Propylene (EPDM) - 129893

C471-16 Main Disc - Kalrez® (FFKM) - 129036

C471-16 Main Disc - Neoprene (CR) - 129105

C471-16 Main Disc - Nitrile (NBR) - 128649

C471-16 Main Disc - Teflon® (PTFE) - 129024

C471-16 Main Disc - Viton® (FKM) - 125869

C471-16 Male Packing Adaptor - Teflon® (PTFE) - 128676

C471-16 Operating Lever - Steel - 128700

C471-16 O-Ring - Ethylene Propylene (EPDM) - 129217

C471-16 O-Ring - Teflon® (PTFE) - 129030

C471-16 O-Ring - Viton® (FKM) - 125779

C471-16 Packing - Teflon® (PTFE)  (Qty. 3) - 128679

C471-16 Repair Kit - 125012

C471-16 Rod Wiper - Polyurethane (PU) - 128685

C471-16 Screw - Stainless Steel (Qty. 4) - 129235

C471-16 Spring - Stainless Steel - 128670

C471-16 Spring Lock Washer - 129321

C471-16 Spring Lock Washer (Qty. 3) - 129322

C471-16 Spring Seat - Stainless Steel - 129201

C471-16 Stem Assembly - Steel/Stainless Steel - 129205

C471-16 Stub Shaft - Stainless Steel - 129174

C471-16 Travel Stop - Stainless Steel - 125860

C471-16 Washer - Stainless Steel - 125801

C471-16 Washer - Stainless Steel - 129035

C471-16 Washer - Stainless Steel - 129038

C471-16 Washer - Stainless Steel (Qty. 2) - 129039

C471-16 Washer - Steel - 128667

C471-16 Washer - Steel (Qty. 2) - 128673

C471-16 Washer - Steel - 128898
