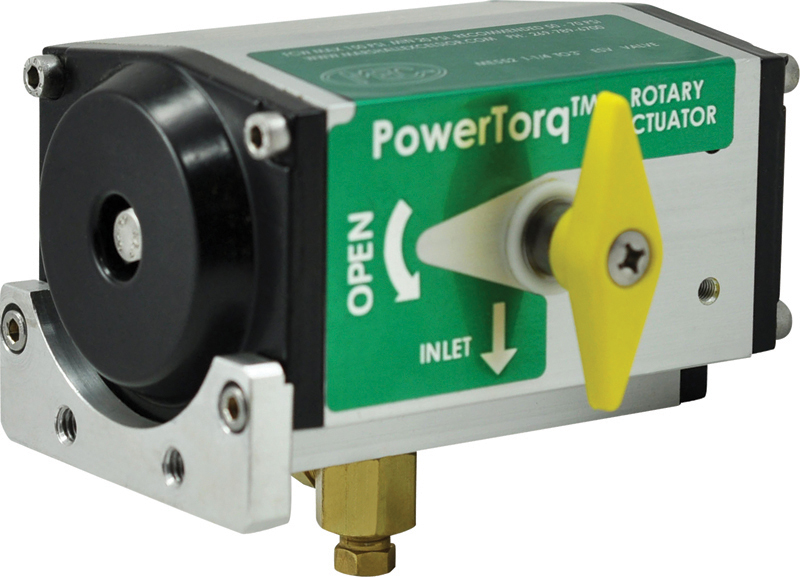

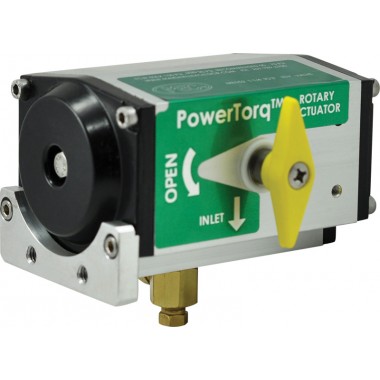

- Type: Rotary Actuator
- Fits: ME980-10, ME980-16, ME980-16-2F,
ME980-24, ME980-24-3F, & ME980-24-4F
Features:
Stainless Steel all weather mounting hardware.
Actuator unit field repairable under full tank pressure.
Direct drive design does not apply side load to internal valve stem packing for maximum valve life.
No pinch points for operator safety.
Heavy duty pneumatic actuator with 212°F. eutectic fire protection.
Specifically designed for Fisher® Internal Valves & ESV.
Anodized aluminum actuator body with easy to read open/close indicator.
Easy to assemble and can be oriented to suit installation.
Operating Pressure Limits: Minimum - 25 PSIG.
Maximum - 125 PSIG.
Recommended - 40-60 PSIG.
Features low temperature seals for use with compressed air, nitrogen, or LPG.
Includes mounting bracket for ME707 Quick Release Valve (not required).
